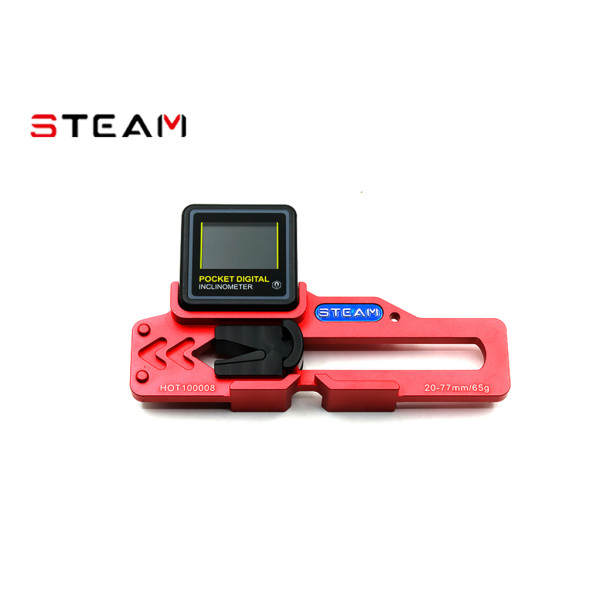

Smart Digital Pitch Ruler HOT100008-B
Suitable for rotors of 120-900 helicopters with blade widths of 20-77mm, used to measure rotor angle pitch. The ultra-light structural design makes the entire product only 65g.
The main body has three colors to choose from: red/titanium/green, and is made of 6061T6 aluminum alloy with high-precision five-axis CNC processing.
The Saigang clamp with patented technology design is very smooth and sharp, and can clamp various rotors well.
The digital display inclination box on the top has a magnetic adsorption measurement surface function, two measurement angles, and one-button switching of two unit slopes and angles.
With a Type-C charging cable, you don’t have to worry about power shortage during use.
The LCD high-definition display with backlight function can still be seen clearly in the sun.
Before use, place the bottom of the pitch ruler on the motor or other relatively flat part of the helicopter (to avoid the screw cap on the top of the motor, design the contact surface of the bottom of the pitch ruler into the shape shown in the figure.
In the power-on state, short-press the power button on the top of the digital display inclination box, the number on the screen changes to "0.00" and the character "REF" is displayed. It can be used on 200-level helicopters.
Using the unique split design, the two CNC The processed slider can also present a "V" sharp angle shape. The angle obtained by clamping the pitch ruler on the rotor is the pitch angle.
Product Specification:
Digital display inclination box (36.0x36.0x20.0mm) x1
Third generation pitch ruler metal parts (113.0x38.0x18.0mm) x1
Front slider (27.0x16.5x16.0mm) x1
Rear slider (27.0x20.5x11.0mm) x1
M2.0x8mm hexagon socket screw x2
M2.0x3mm hexagon socket screw x2
M3.0x5mm hexagon socket screw x2
M2.5x7mm flat head hexagon socket screw x2
Spring (medium 0.3x$3.0x25.0mm) x2
Magnet (medium 4.0x12.0x2.0mm) x1
Charging cable x1
