Home>FPV Drone and Part>Radiolink R8FG R8FM R8XM 8CH 2.4Ghz Receiver with Voltage Transmission Dual Antenna FPV Car RC Boat 800 Meters

Radiolink R8FG R8FM R8XM 8CH 2.4Ghz Receiver with Voltage Transmission Dual Antenna FPV Car RC Boat 800 Meters Item NO.: 40499090

Write a Review

US$ 6.65

Color:
1PCS R8XM	US$ 8.23	Stock(999)	- +
1PCS R8FM	US$ 6.65	Stock(999)	- +
1PCS R8XM R8FM	US$ 14.67	Stock(999)	- +
1PCS R8FG	US$ 12.75	Stock(999)	- +

Quantity: 0 , Subtotal 0

Product Name	Radiolink R8FG R8FM R8XM 8CH 2.4Ghz Receiver with Voltage Transmission Dual Antenna FPV Car RC Boat 800 Meters
Item NO.	40499090
Weight	0.023 kg = 0.0507 lb = 0.8113 oz
Category	FPV Drone and Part
Brand	Radiolink
Creation Time	2024-01-24

Radiolink R8FM Mini 2.4G 8 Channels 8CH Receiver FHSS for Radiolink T8FB Transmitter Support S-BUS PPM Receivers RC FPV Drone

Features:
【Super Mini Size】: Total 2.5g lightweight, 16.021.51.0mm. 2048 section precision, 0.5us per section, servo anti-shake rudder.
【8 Channels】: 2.4G 8 channels receiver, for T8S/T8FB of Radiolink's transmitter, it a good choice for tiny racing drone.
【Two Signal Working Mode】:Support SBUS/PPM signal output.
【Stable Control Distance】: 2000 meters control distace in air, actually control distance depends on the environment
【You Will Get】:advanced technology receiver and 12 months warranty and 24 hours friendly customer service.

Please note:
1.R8FM 8CH receiver only work with Radiolink transmitter products: T8S/T8FB.

S-BUS and PPM signal change:
1.Short press the binding button twice within 1 second to switch the S-BUS signal to PPM signal. When the Red indicator is on, signal output is PPM. When the Blue/purple led is on, signal output is SBUS.
2.Blue/purple LED, S-BUS signal, 8 channels totally; Red LED, PPM signal, 8 channels totally.

How to match code with transmitter:
1. Put the transmitter and the receiver close to each other within 50 centimeters.
2. Power on the transmitter and R8SM. The RED led on R8SM will start flashing slowly.
3. Switch on the transmitter and it will automatically bind to the closest receiver.
4. There is a black binding button on the side of receiver. Press the button for more than 1 second and release, the LED will flash quickly, meaning binding process is ongoing.
5. When the LED stops flashing and is always on, binding is complete.

Specifications:
Channels: 8 channels
Working voltage: 4.8-6V
Working current: 30mA（input voltage: 5V）
Size: 16.021.51.0mm
Weight: 2.5g
2048 section precision, 0.5us per section, servo anti-shake rudder.
Control distance: about 2000 meters air, actually control distance depends on the environment.

Radiolink R8FM Mini 2.4G 8 Channels 8CH Receiver FHSS for Radiolink T8FB Transmitter Support S-BUS PPM Receivers RC FPV Drone

Features:
【Super Mini Size】: Total 2.5g lightweight, 16.021.51.0mm. 2048 section precision, 0.5us per section, servo anti-shake rudder.
【8 Channels】: 2.4G 8 channels receiver, for T8S/T8FB of Radiolink's transmitter, it a good choice for tiny racing drone.
【Two Signal Working Mode】:Support SBUS/PPM signal output.
【Stable Control Distance】: 2000 meters control distace in air, actually control distance depends on the environment
【You Will Get】:advanced technology receiver and 12 months warranty and 24 hours friendly customer service.

Please note:
1.R8FM 8CH receiver only work with Radiolink transmitter products: T8S/T8FB.

S-BUS and PPM signal change:
1.Short press the binding button twice within 1 second to switch the S-BUS signal to PPM signal. When the Red indicator is on, signal output is PPM. When the Blue/purple led is on, signal output is SBUS.
2.Blue/purple LED, S-BUS signal, 8 channels totally; Red LED, PPM signal, 8 channels totally.

How to match code with transmitter:
1. Put the transmitter and the receiver close to each other within 50 centimeters.
2. Power on the transmitter and R8SM. The RED led on R8SM will start flashing slowly.
3. Switch on the transmitter and it will automatically bind to the closest receiver.
4. There is a black binding button on the side of receiver. Press the button for more than 1 second and release, the LED will flash quickly, meaning binding process is ongoing.
5. When the LED stops flashing and is always on, binding is complete.

Specifications:
Channels: 8 channels
Working voltage: 4.8-6V
Working current: 30mA（input voltage: 5V）
Size: 16.021.51.0mm
Weight: 2.5g
2048 section precision, 0.5us per section, servo anti-shake rudder.
Control distance: about 2000 meters air, actually control distance depends on the environment.

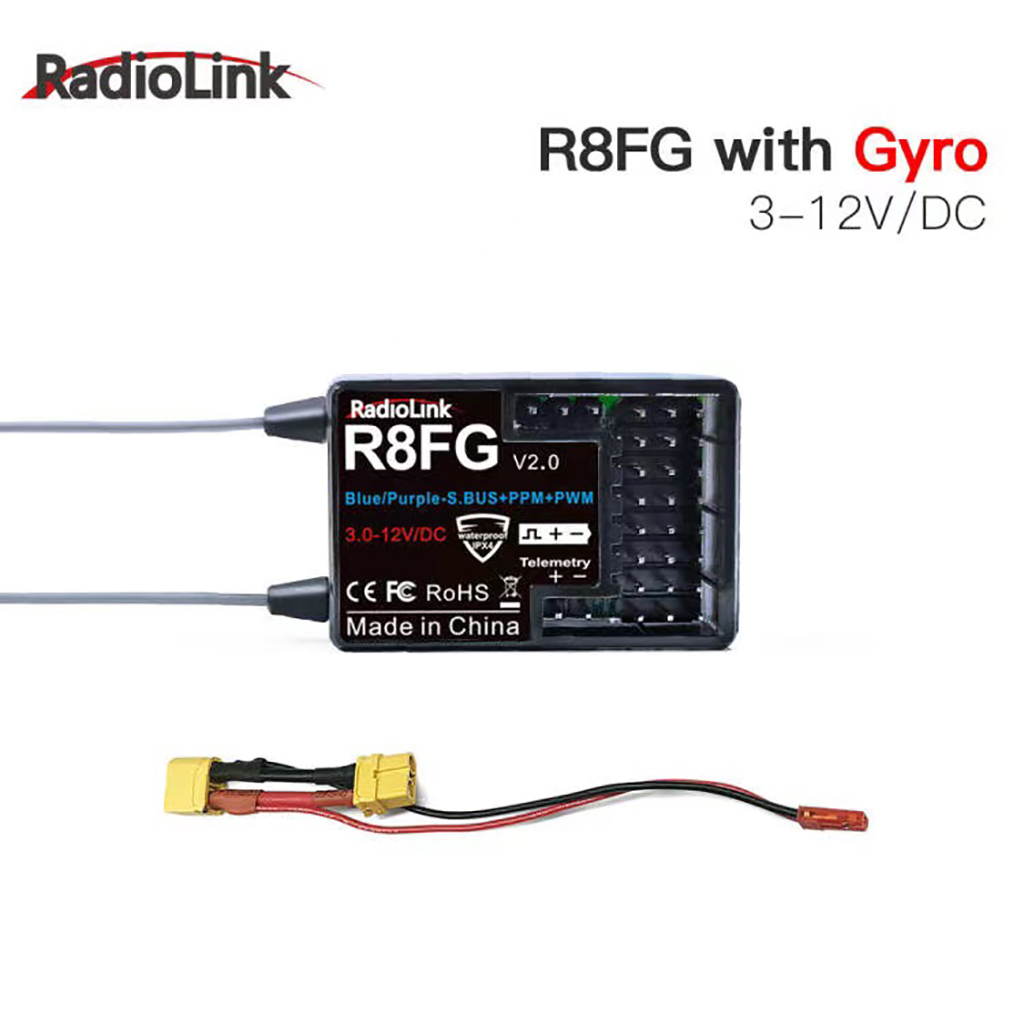

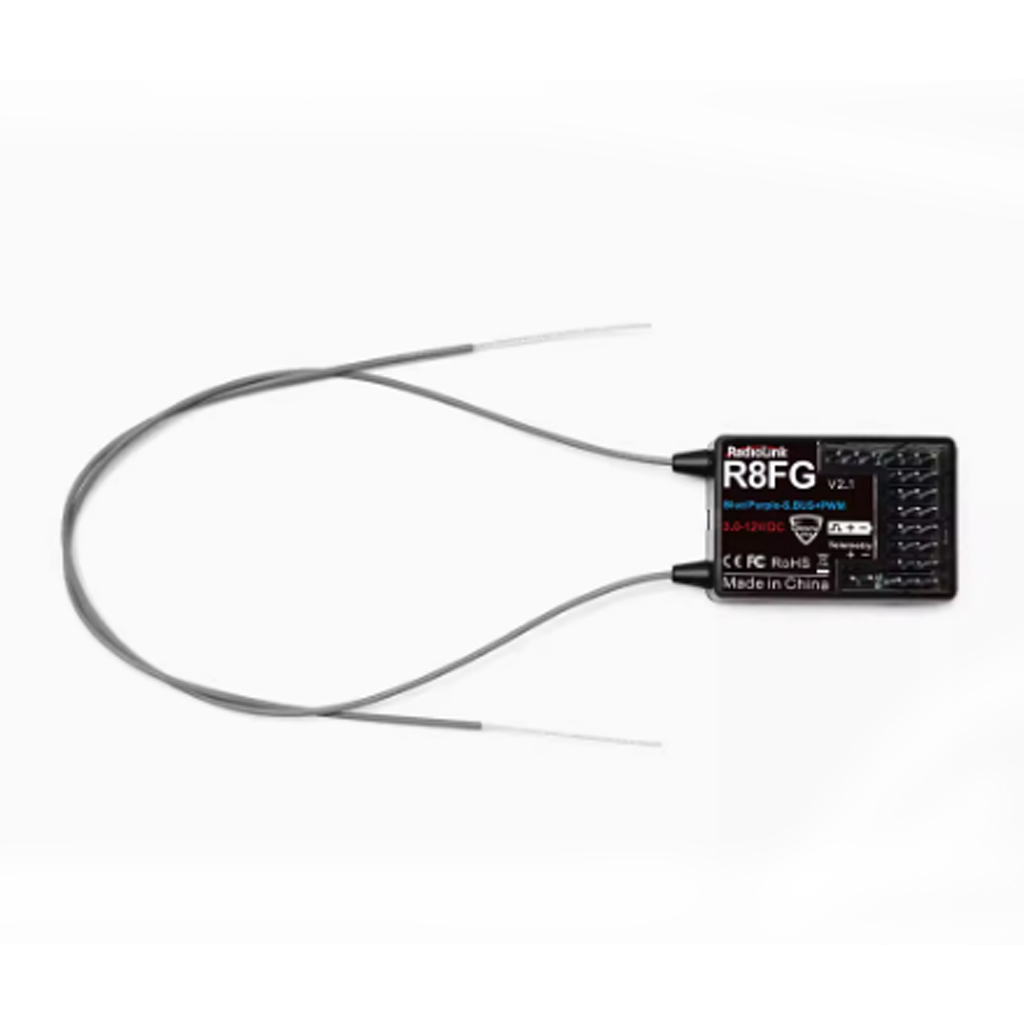

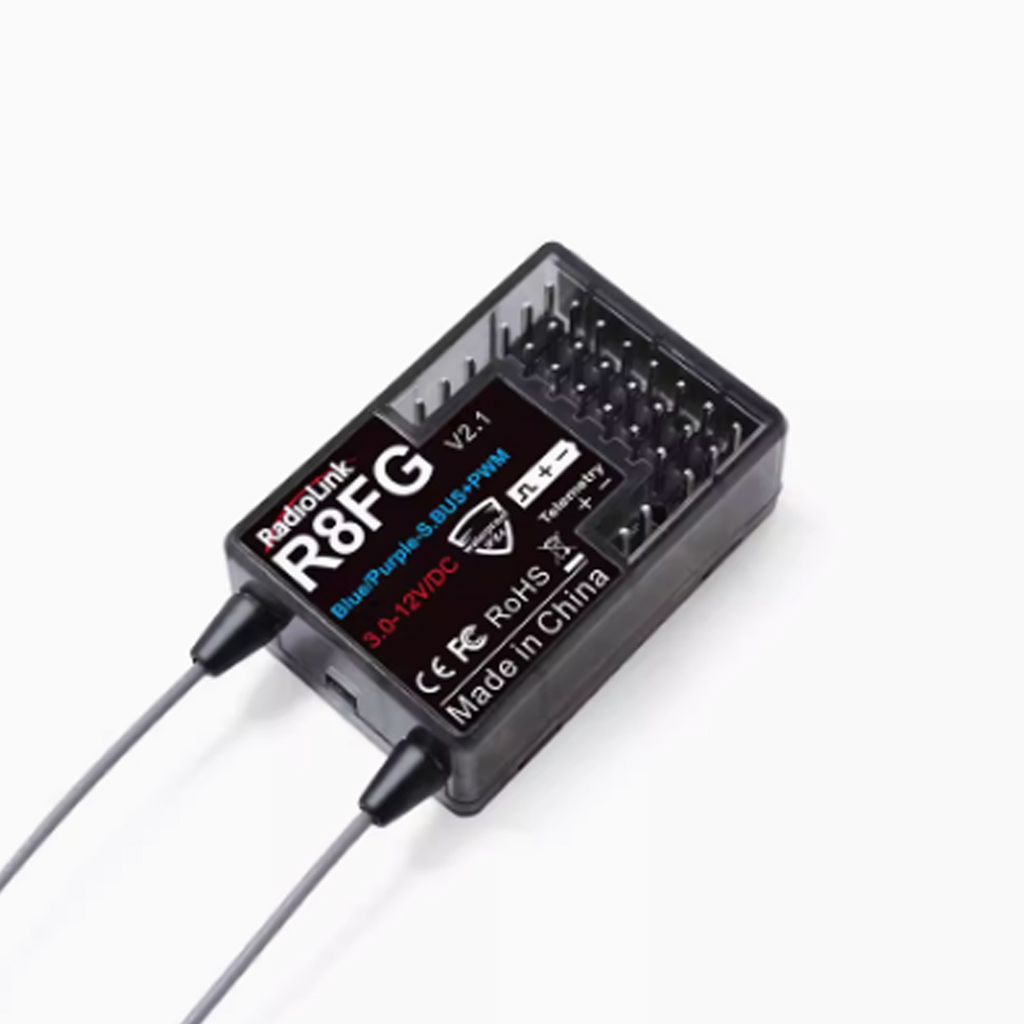

R8FG RX
