Home>Aliexpress>JHEMCU GHF411AIO-BMI F405 Flight Controller 40A 4in1 BLheli_S 2-6S Lipo Brushless ESC For RC Toothpick FPV Drone

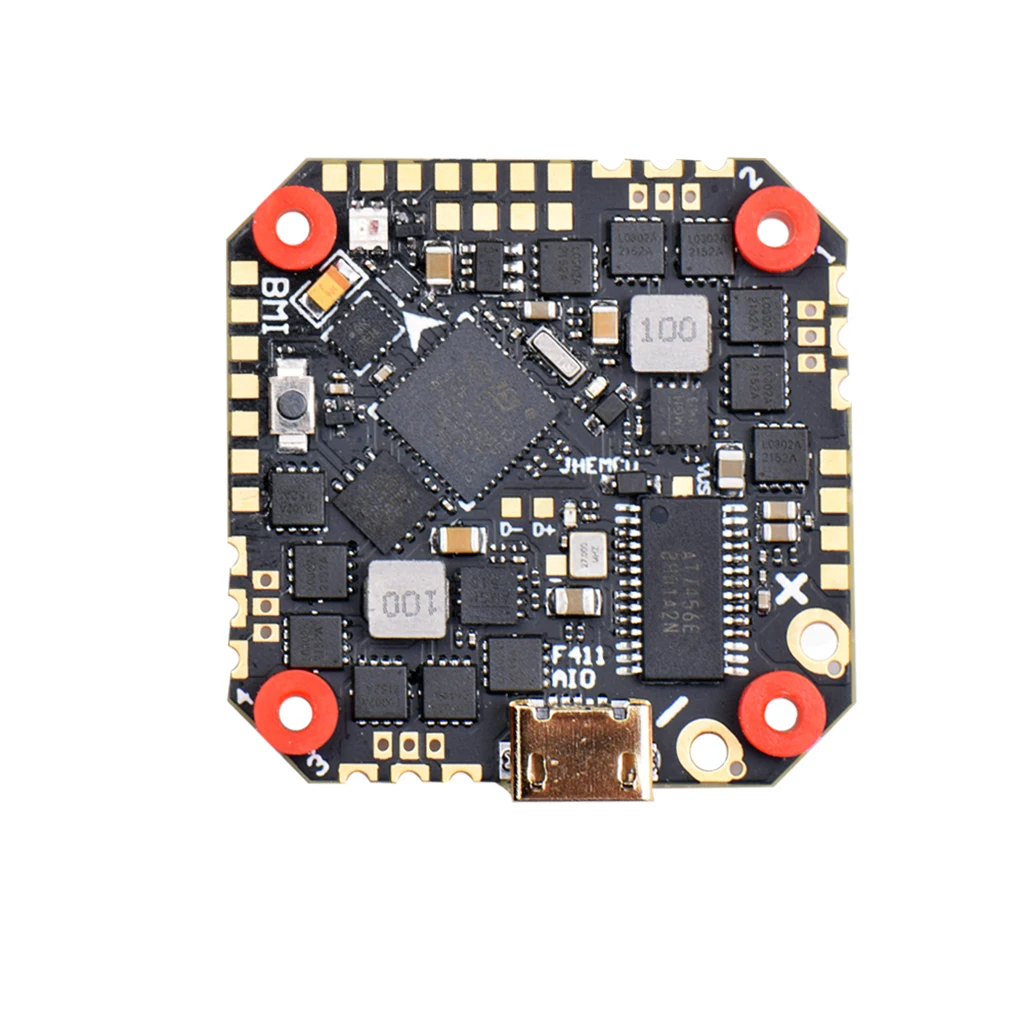

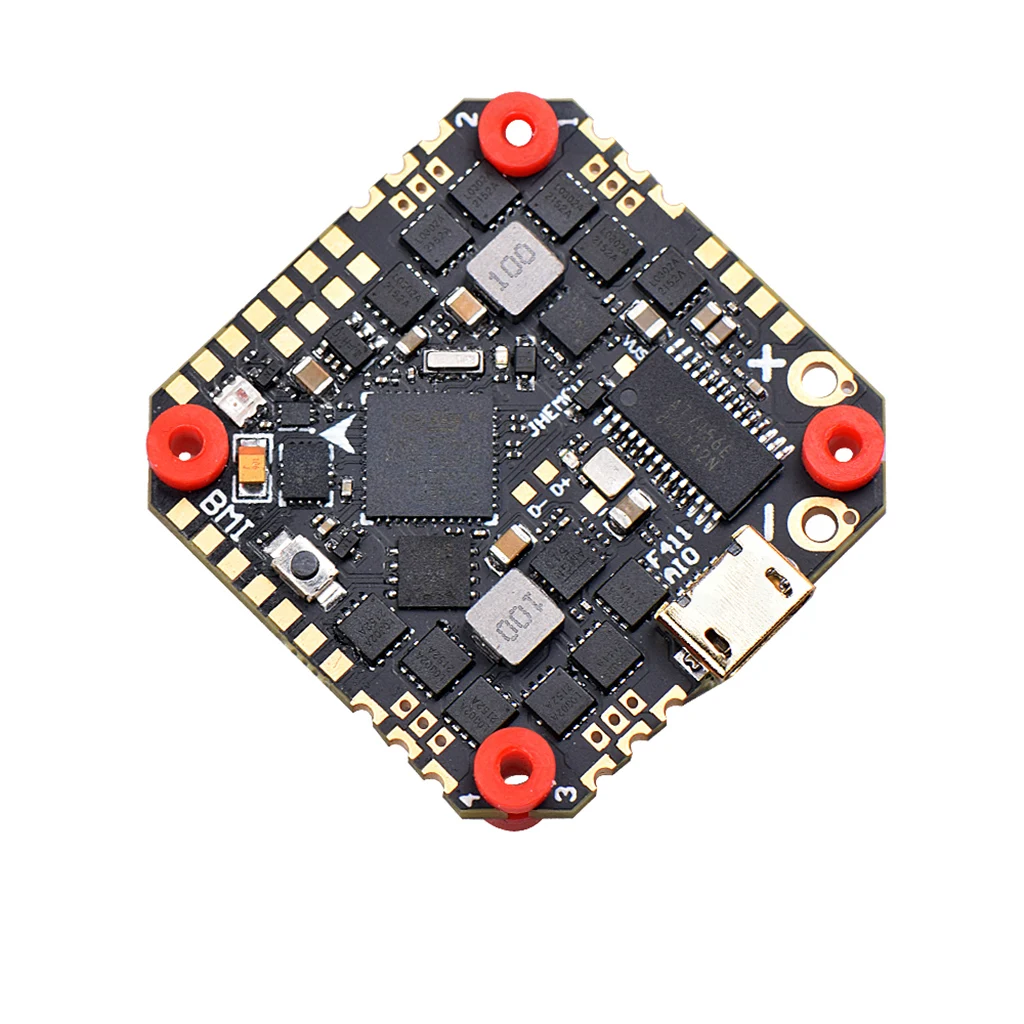

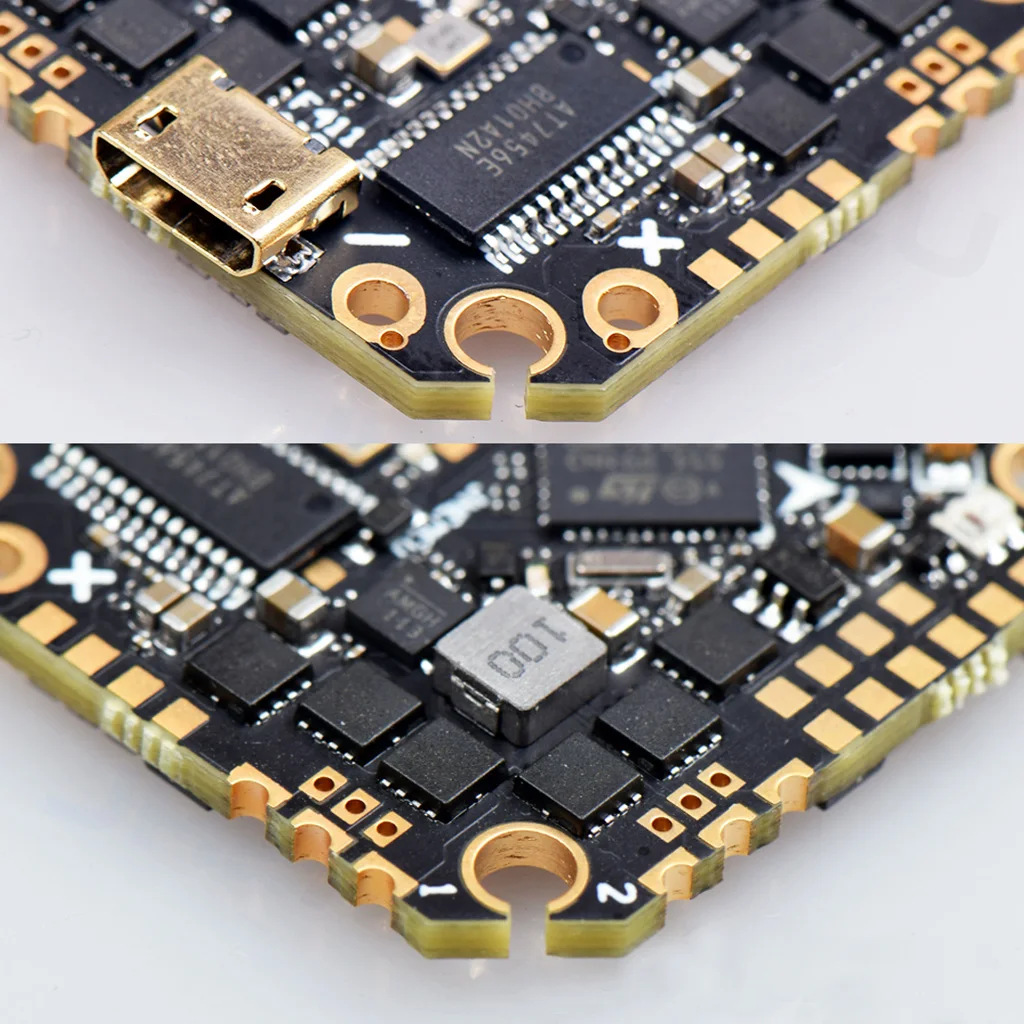

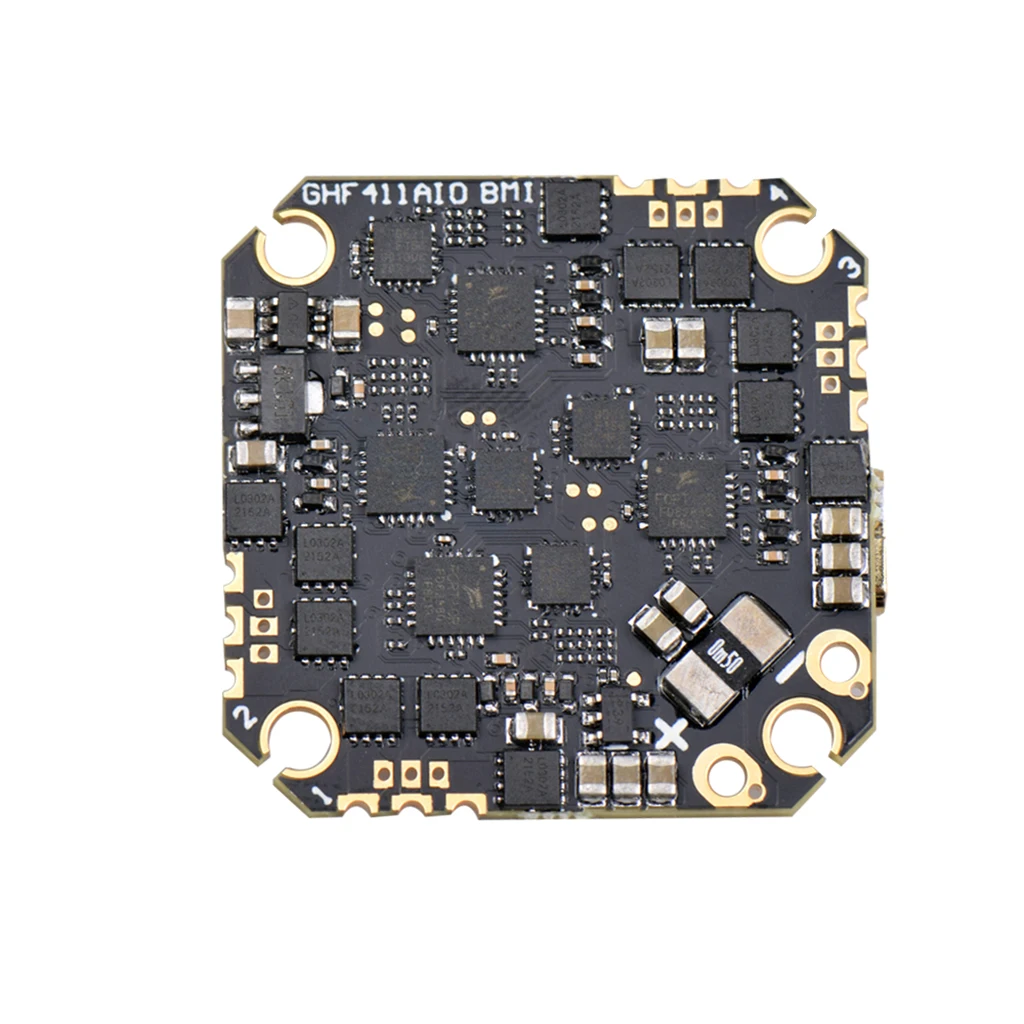

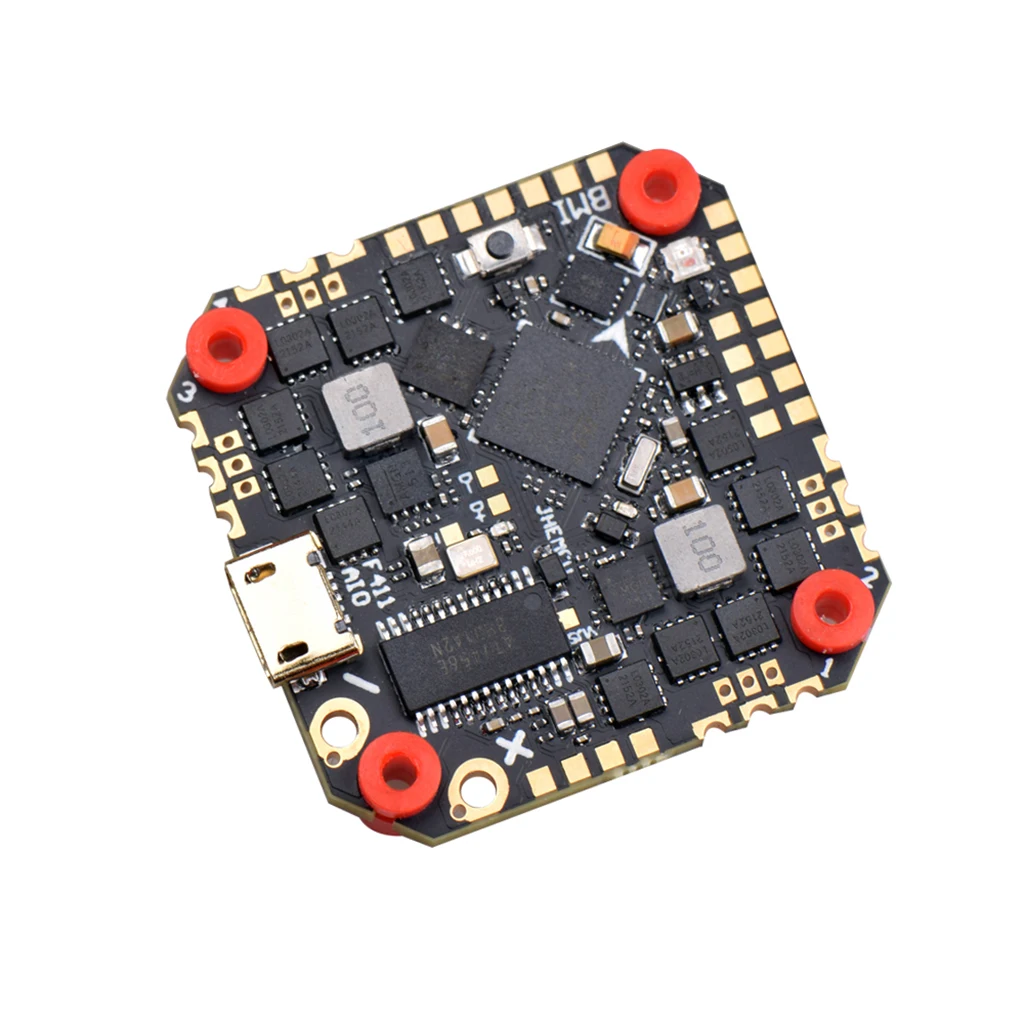

JHEMCU GHF411AIO-BMI F405 Flight Controller 40A 4in1 BLheli_S 2-6S Lipo Brushless ESC For RC Toothpick FPV Drone

JHEMCU GHF411AIO-BMI F405 Flight Controller 40A 4in1 BLheli_S 2-6S Lipo Brushless ESC For RC Toothpick FPV Drone Item NO.: 33868530

Write a Review
US$ 36.36
Color:
GHF420AIO-BMI US$ 36.36 Stock(599)
- +
Quantity: 0 , Subtotal 0
Add to Cart

Adding to cart succeed

0 item(s) in cart, Subtotal: US$ 0

Continue Shopping View My Cart

Copy and share this link on social network or send it to your friends

Copy
Product Name JHEMCU GHF411AIO-BMI F405 Flight Controller 40A 4in1 BLheli_S 2-6S Lipo Brushless ESC For RC Toothpick FPV Drone
Item NO. 33868530
Weight 0.02 kg = 0.0441 lb = 0.7055 oz
Category Aliexpress
Brand JHEMCU
Creation Time 2022-08-03

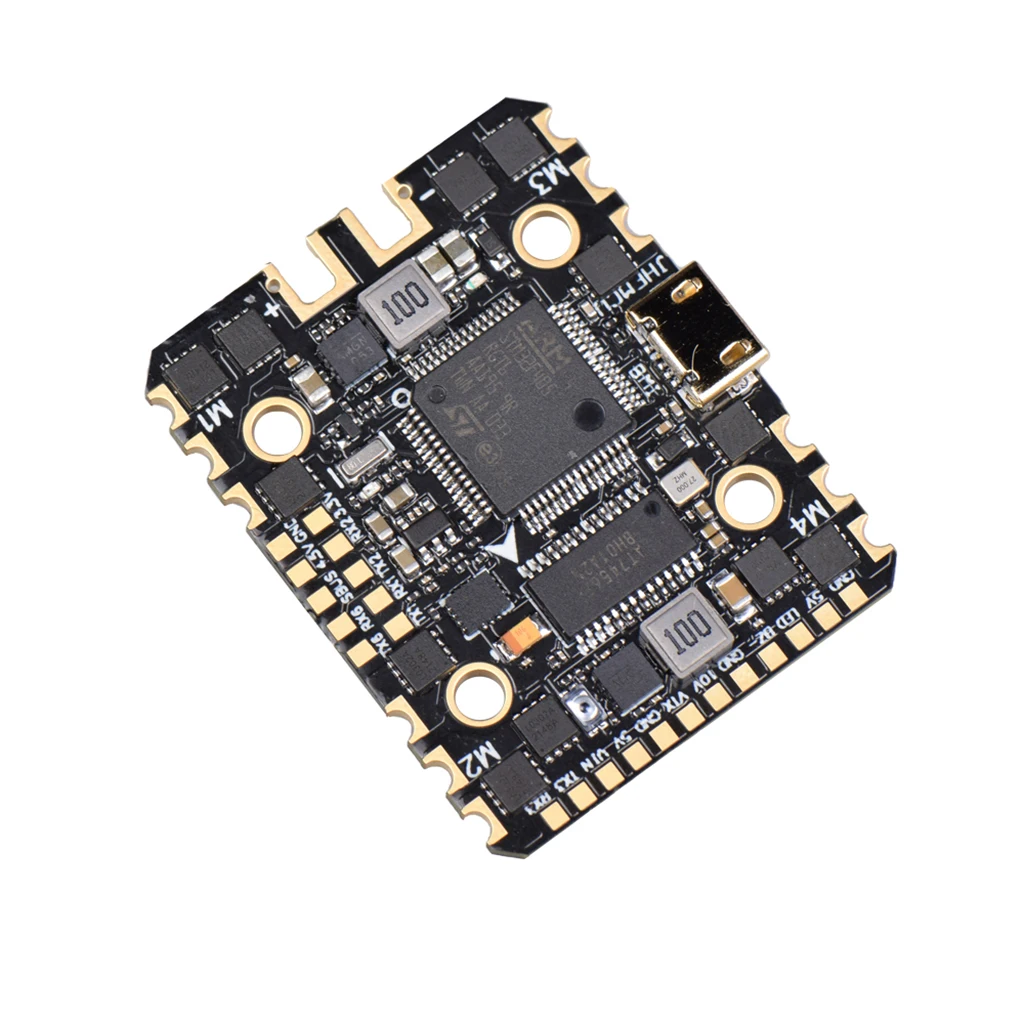

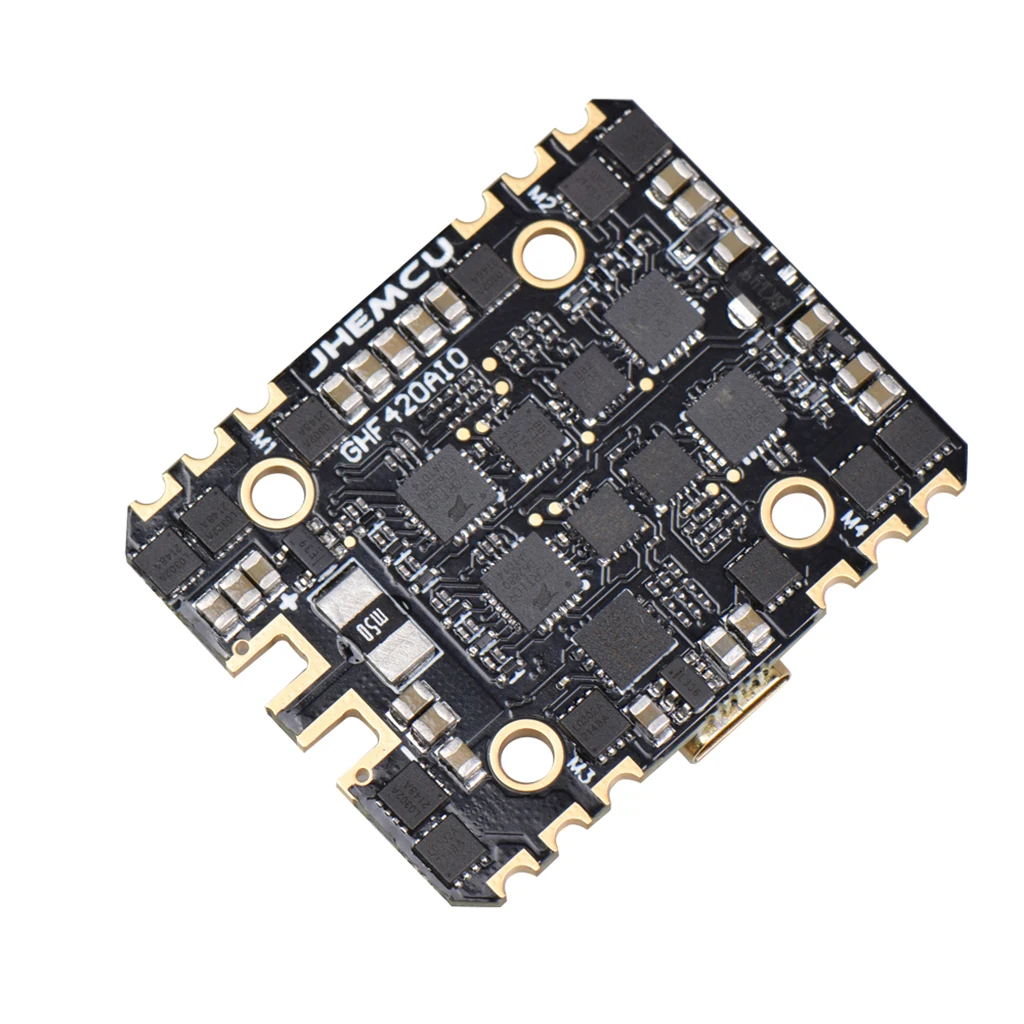

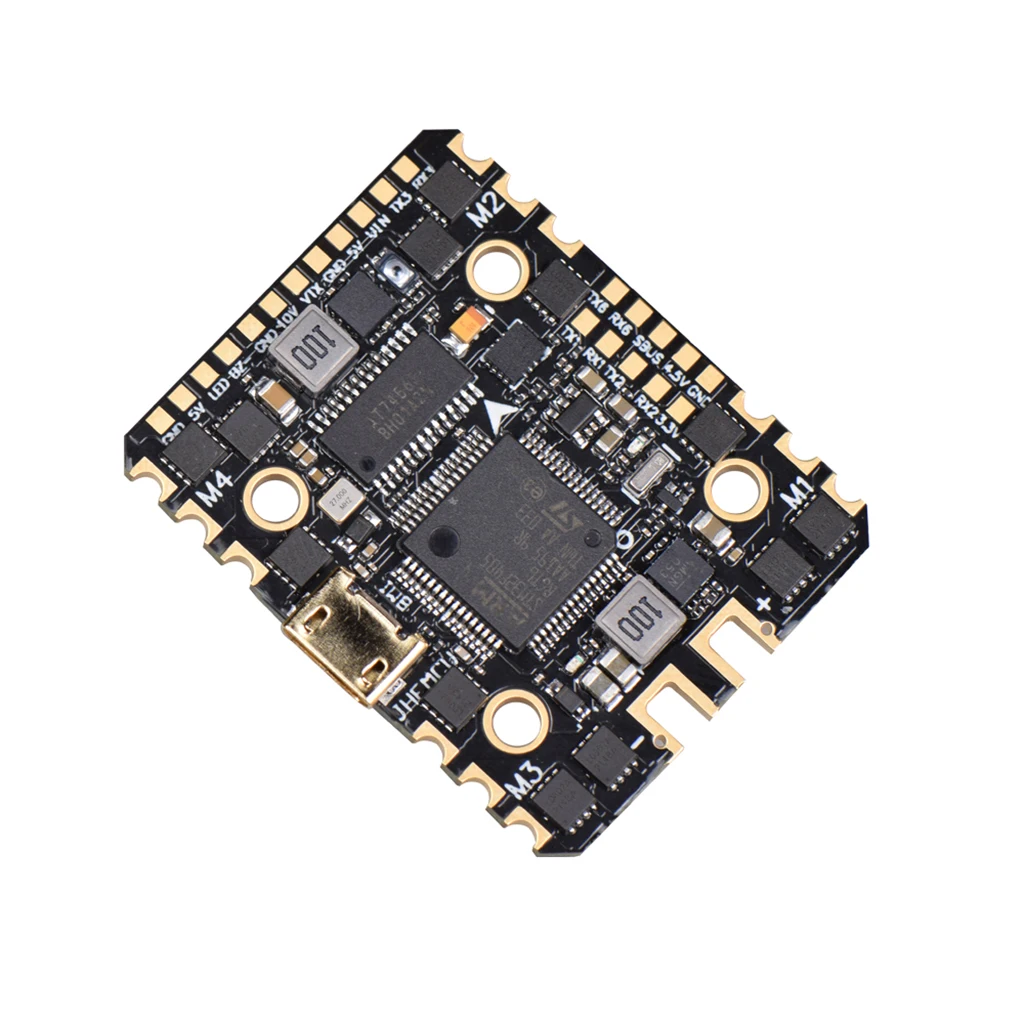

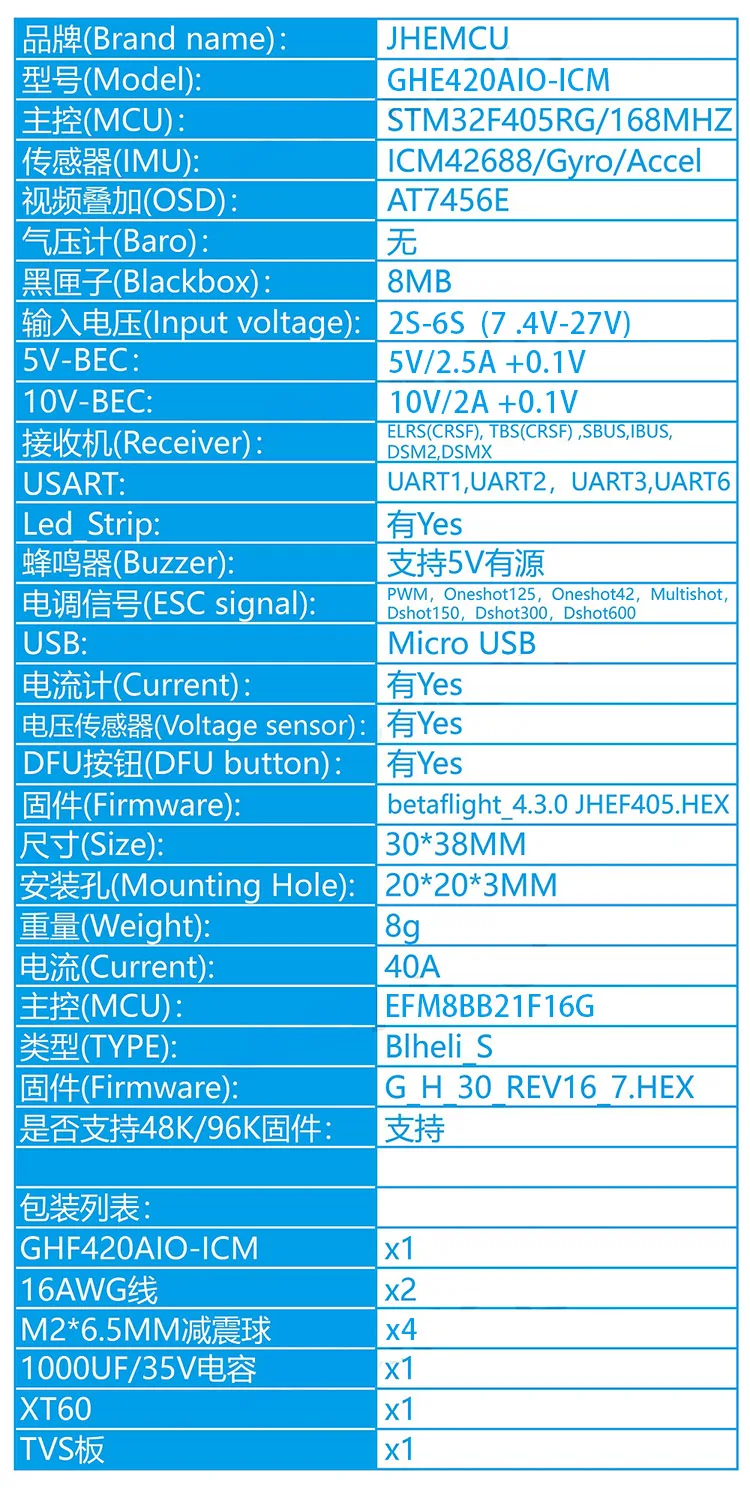

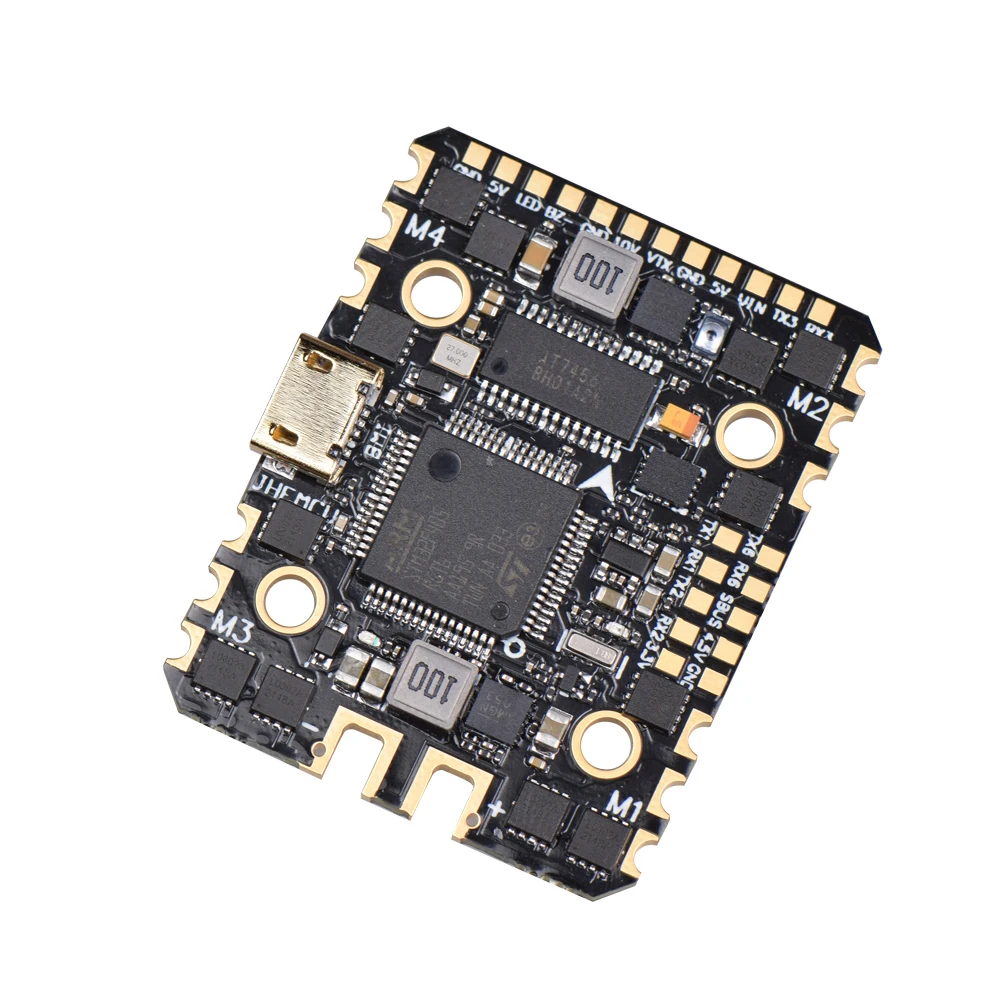

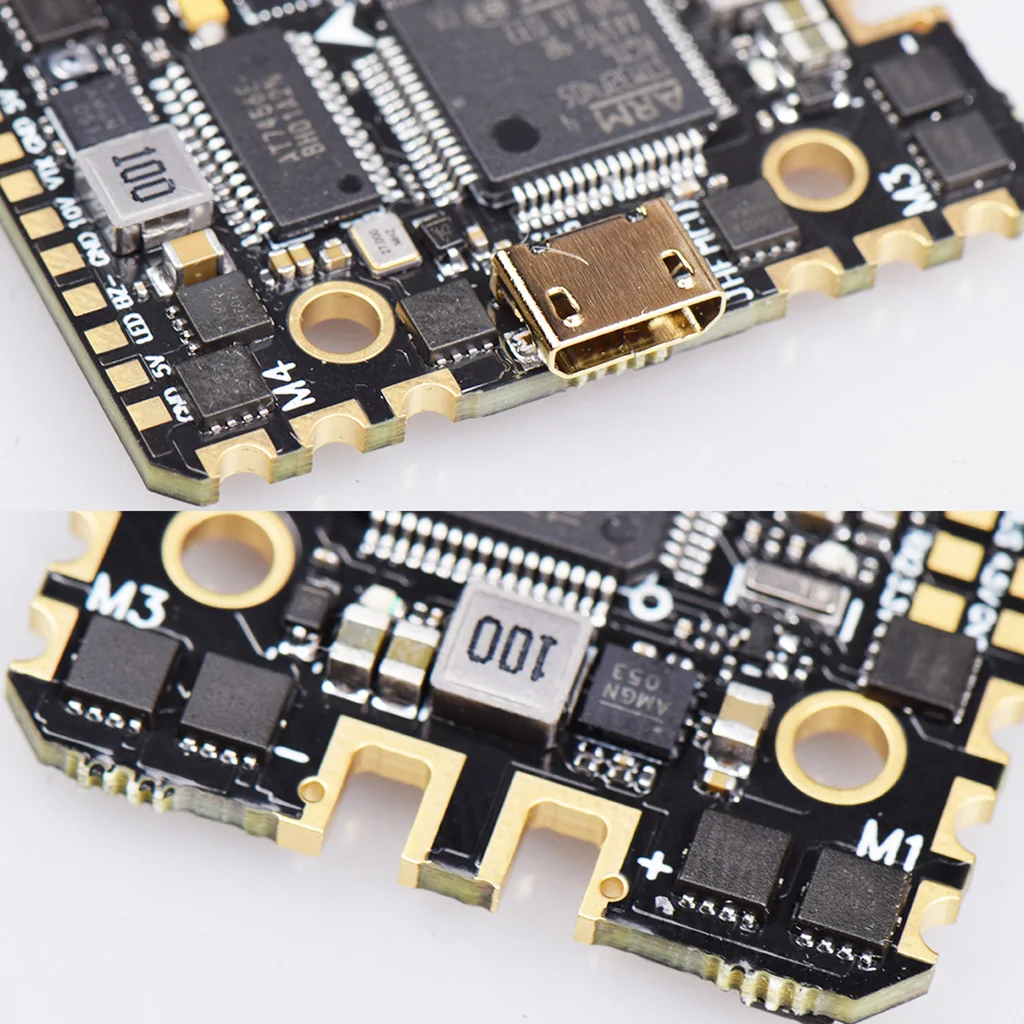

Item: JHEMCU GHF420AIO-ICM 40A Flight Controller
Parameters:
Brand Name: JHEMCU
Model: GHF420AIO-ICM
MCU:STM32F405RG/168MHz
IMU:ICM42688/Gyro/Accel
OSD:AT7456E
Baro:None
Blackbox: 8MB
Input Voltage: 2-6S Lipo(7.4-27V)
5V BEC:5V/2.5A ±0.1V
10V BEC:10V/2A ±0.1V
Receiver: ELRS(CRSF),TBS(CRSF),SBUS,IBUS,DSM2,DSMX
UART:UART1,UART2,UART3,UART6

LED Strip:Support
Buzzer:Support 5V Active
ESC Signal:PWM, Oneshot42, Oneshot125, Multishot, Dshot150 and Dshot300, Dshot600
USB: Micro USB
Current Port:YES
Voltage sensor:YES
DFU button:YES
Firmware:Betaflight -4.3.0 JHEF405.HEX
ESC Current:40A
MCU:EFM8BB21F16G
Type:BLHELI-S
Current Sensor:YES
Firmware:G-H-30-REV16-7.HEX

Whether to support 48K/96K firmware:Support
Size:30*38mm
Mounting holes:20*20*3mm

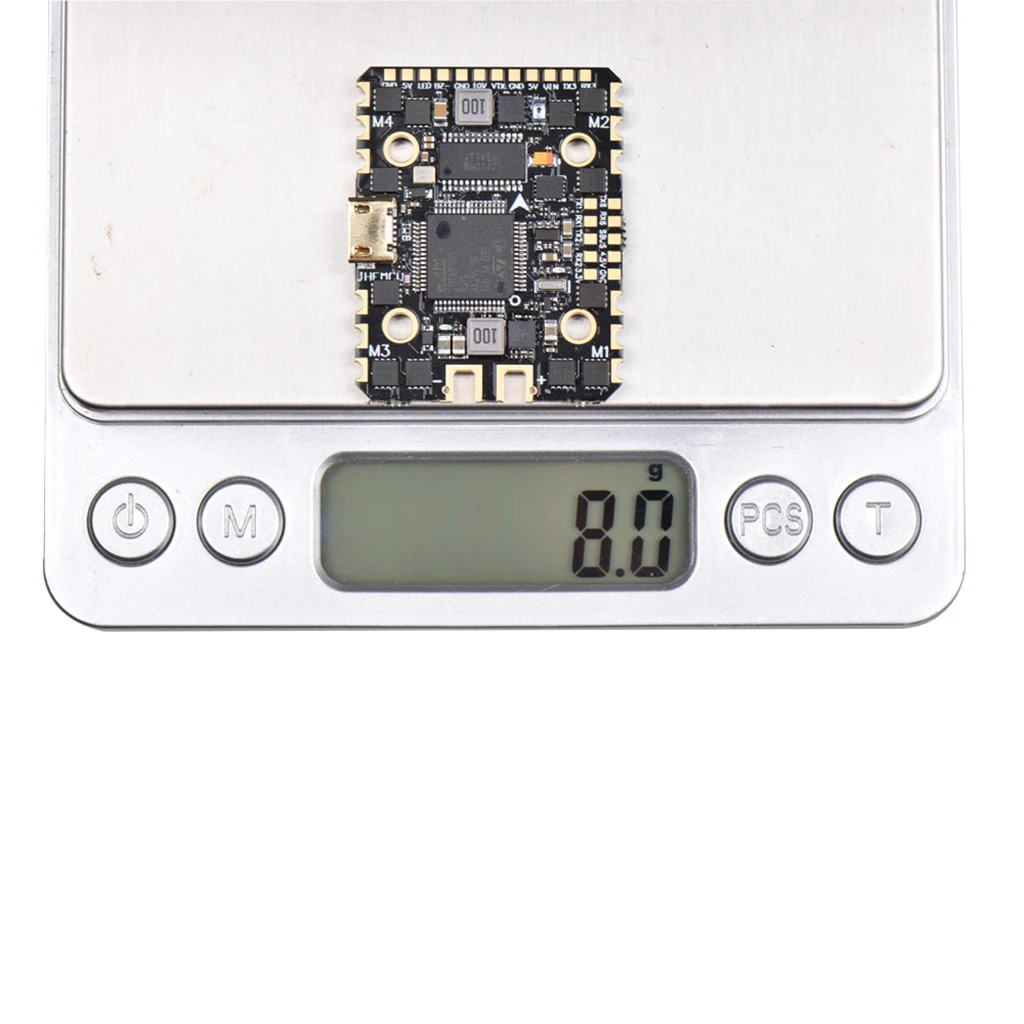

Weight:8g

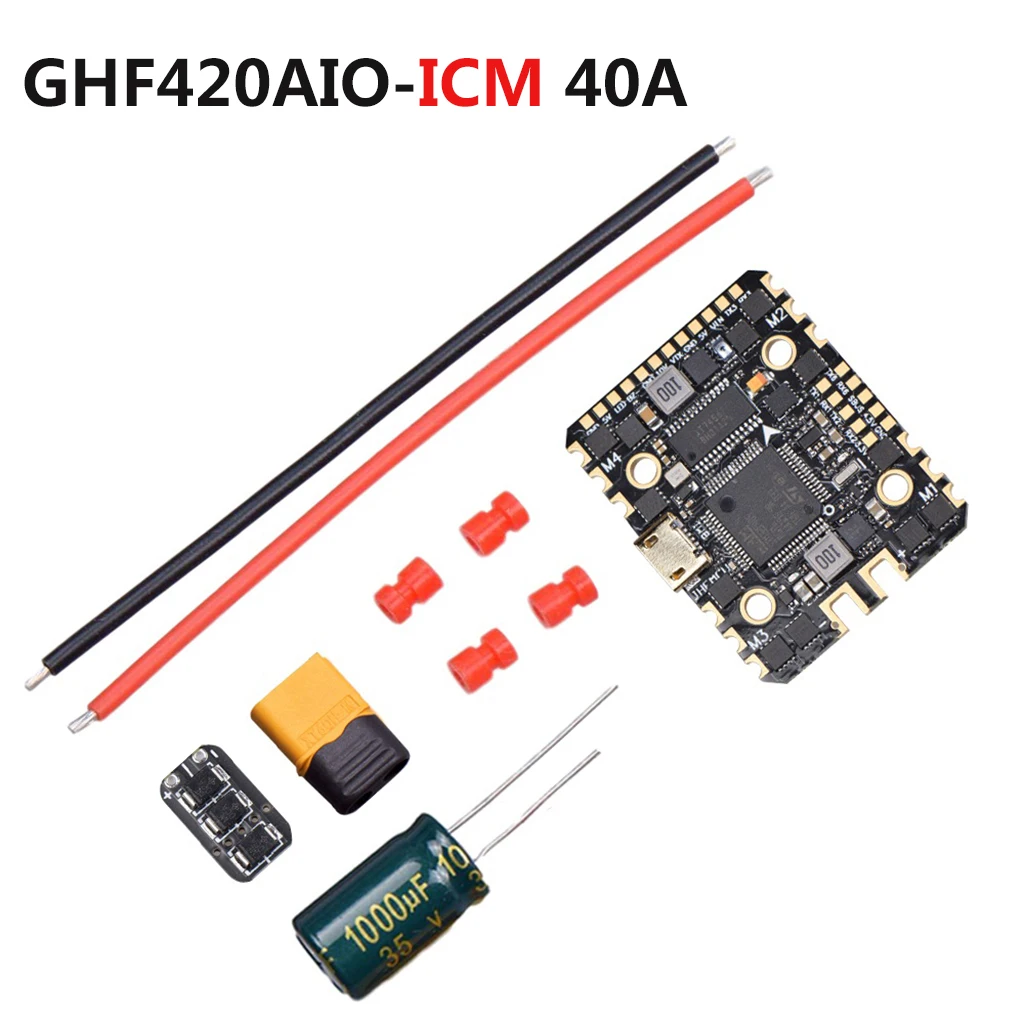

  • Package Included:

  • GHF420AIO-ICM x1
    XT60 x1
    M2x6.5mm Anti-vibration Ball x4
    TVS board x1
    16AWG Power Cable x2
    1000UF/35V Electrolytic capacitor x1
