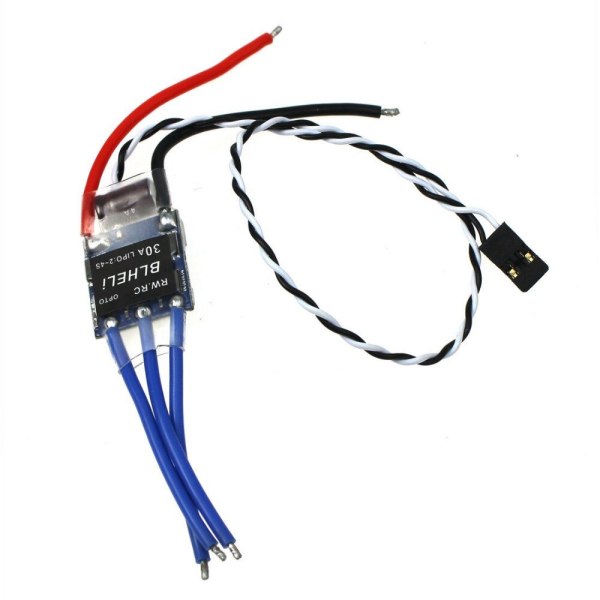

FEICHAO RW.RC V14.2 Version BLHeli Program OPTO mini 30A ESC for Multirotor 250 FPV Race DIY Item NO.: F16818

Write a Review

US$ 7.34

Color:
30A	US$ 9.12	Stock(2495)	- +

Quantity: 0 , Subtotal 0

Product Name	FEICHAO RW.RC V14.2 Version BLHeli Program OPTO mini 30A ESC for Multirotor 250 FPV Race DIY
Item NO.	F16818
Weight	0.05 kg = 0.1102 lb = 1.7637 oz
Category	FPV Drone and Part > RC Parts
Brand	FEICHAO
Creation Time	2020-10-14

RW.RC V14.2 Version BLHeli Program OPTO mini 30A ESC for Multirotor 250 FPV Race

Description:

Note: Dshot mode is not supported.

Item Name: 30A ESC

Voltage: 6-16.8V(2-4s lipo)

Output Current: 16A/30A

BEC: No

Signal Frquency: 20-499Hz

PMW Frequency Output: 18KHz

Firmware: BLHeli V14.2

Size: 24 x 13 x 5 mm(PCB board)

Weight: 2.5G(without cable)

Weight: 6G(with cable)

Features:

Support connecting with PC for upgrading firmware or adjust parameter

Specialize for mini multirotor QAV250, high throttle response speed

Energy saving design, compatible with multi motors

The throttle signal use twisted-pair cable, reduce the interference, make the signal more stable during flying

The latest and highest throttle refresh rate,compatible with all flight controller system

Use the latest technology of ultra-low resistance micro MOSFET tube, has conductive properties of high speed and high load

Package Included:

1 x ESC

Q:Why does the product display "?" on BLHeli version when the ESC is connected to the PC?
A:Please find out the corresponding firmware to re-brush.
Q:Why the product is 30A but when connected to the computer, PC displays 12A?
A:The firmware is universal and can be used together for Mini 30A and 12A

Note:

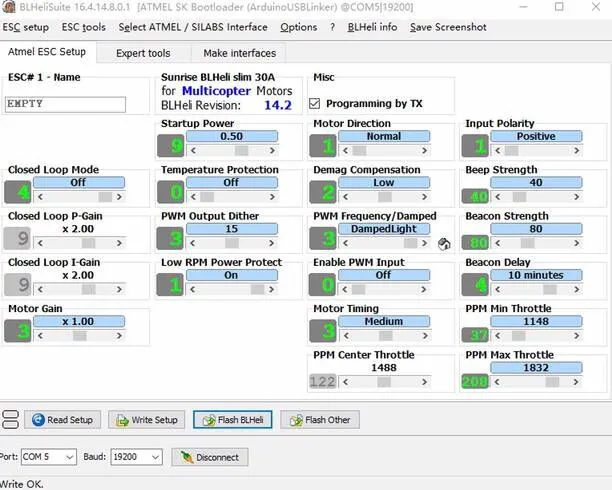

The PC interface after the Mini 20a is conneced

aeProduct.getSubject()

If you want to upgrade the firmware, Please must find out the corresponding HEX file:

Mini 16A (Blheli), Mini 20A (Blheli) Hex File: SUNRISE_BLHELI_SLIM_30A_MULTI_REV

Mini 30A (BLheli) HEX File: XP_12A_MULTI_REV14_3.HEX
Can Self-brush: XP_18A_MULTI_REV14_3.HEX XP_25A_MULTI_REV14_3.HEX
