All-weather ƒ / 2.0 large aperture flower fly FPV camera.
1 / 2-inch outsole image sensor | ƒ / 2.0 large aperture lens | excellent night vision performance | same level of delay as Eagle
Vivid and natural colors.
With an upgraded CPU and a half-inch (1/2 ") large-size image sensor, the Phoenix 2 Nano has gorgeous and natural high-resolution image quality.
Excellent night vision performance!
With a 1/2 ”large-size high-quality image sensor and high-quality 7 glass lens, the night vision performance of Phoenix 2 Nano is comparable to RunCam Eagle!
ƒ / 2.0 large aperture lens, less flare.
High-quality 7 glass ƒ / 2.0 large aperture lens, less flare, less purple fringe. This lens is also used in the RunCam Hybrid dual camera.
Less digital interference.
Compared with Eagle, Phoenix 2 Nano has less digital interference and a cleaner picture.
Delay at the same level as Eagle.
The delay of Micro Phoenix 2 is less than 25ms, which is at the same level as the delay of Micro Eagle. Free flight, no jamming.

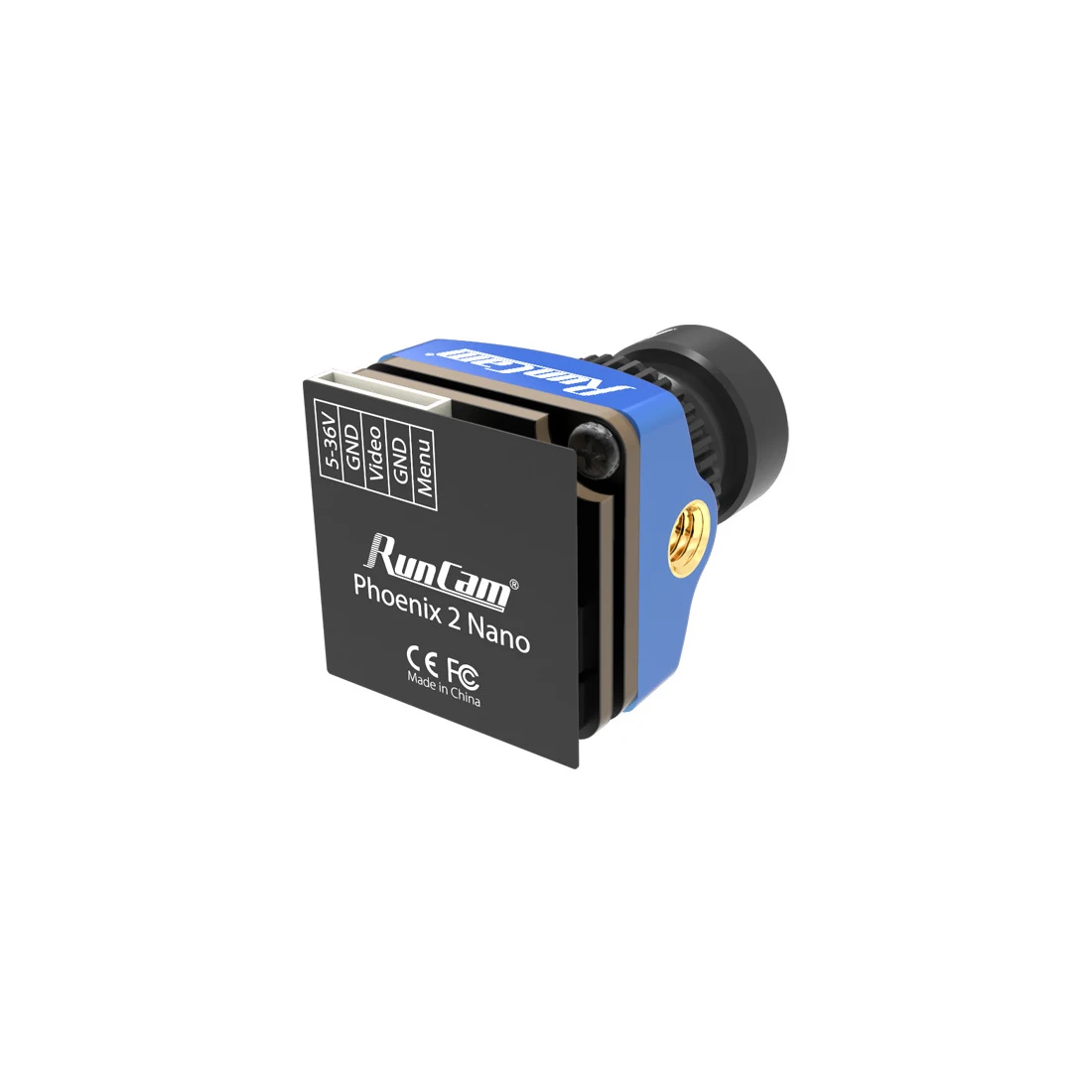

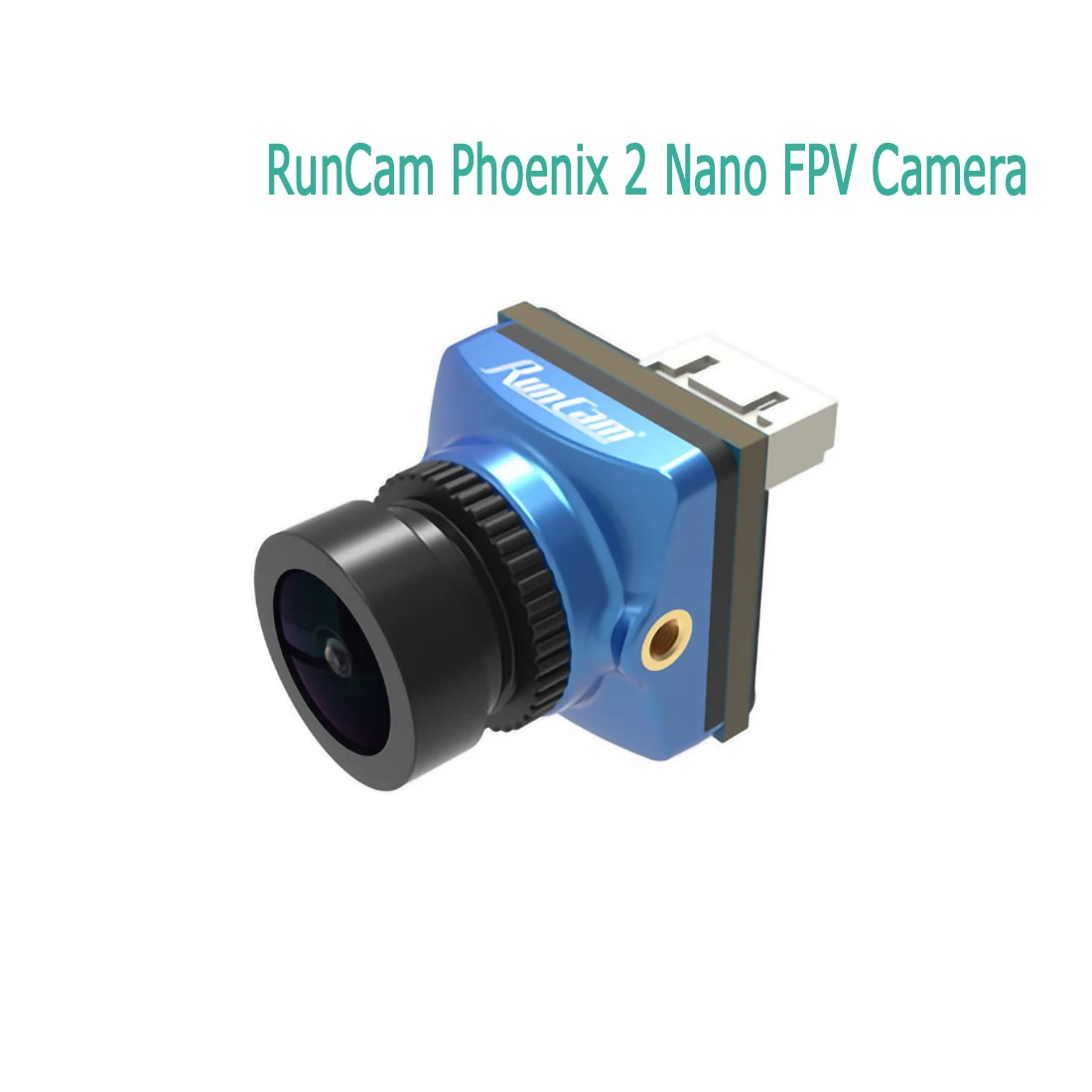

Parameters (Nano Version)
Model
|
RunCam Phoenix 2 Nano
|
|
Image Sensor
|
1/2" COMS Sensor
|
|
Horizontal Resolution
|
1000TVL
|
|
Lens
|
2.1mm (M8) FOV155° (4:3)
|
|
Screen Format
|
4:3 / 16:9 switchable
|
|
Mirror/Flip
|
Available
|
|
Signal System
|
PAL / NTSC Switchable
|
|
S/N Ratio
|
>50dB (AGC OFF)
|
|
Electronic Shutter Speed
|
Auto
|
|
Auto Gain Control (AGC)
|
Auto
|
|
Min. Illumination
|
0.001Lux@1.2F
|
|
WDR
|
Global WDR
|
|
Day/Night
|
Color/BW/EXT/Auto
|
|
Menu Control
|
Cable Control
|
|
Power
|
DC 5-36V
|
|
Current
|
190mA@5V/80mA@12V
|
|
Housing Material
|
ABS
|
|
Net Weight
|
5g
|
|
Dimensions
|
14mm*14mm*22mm
|

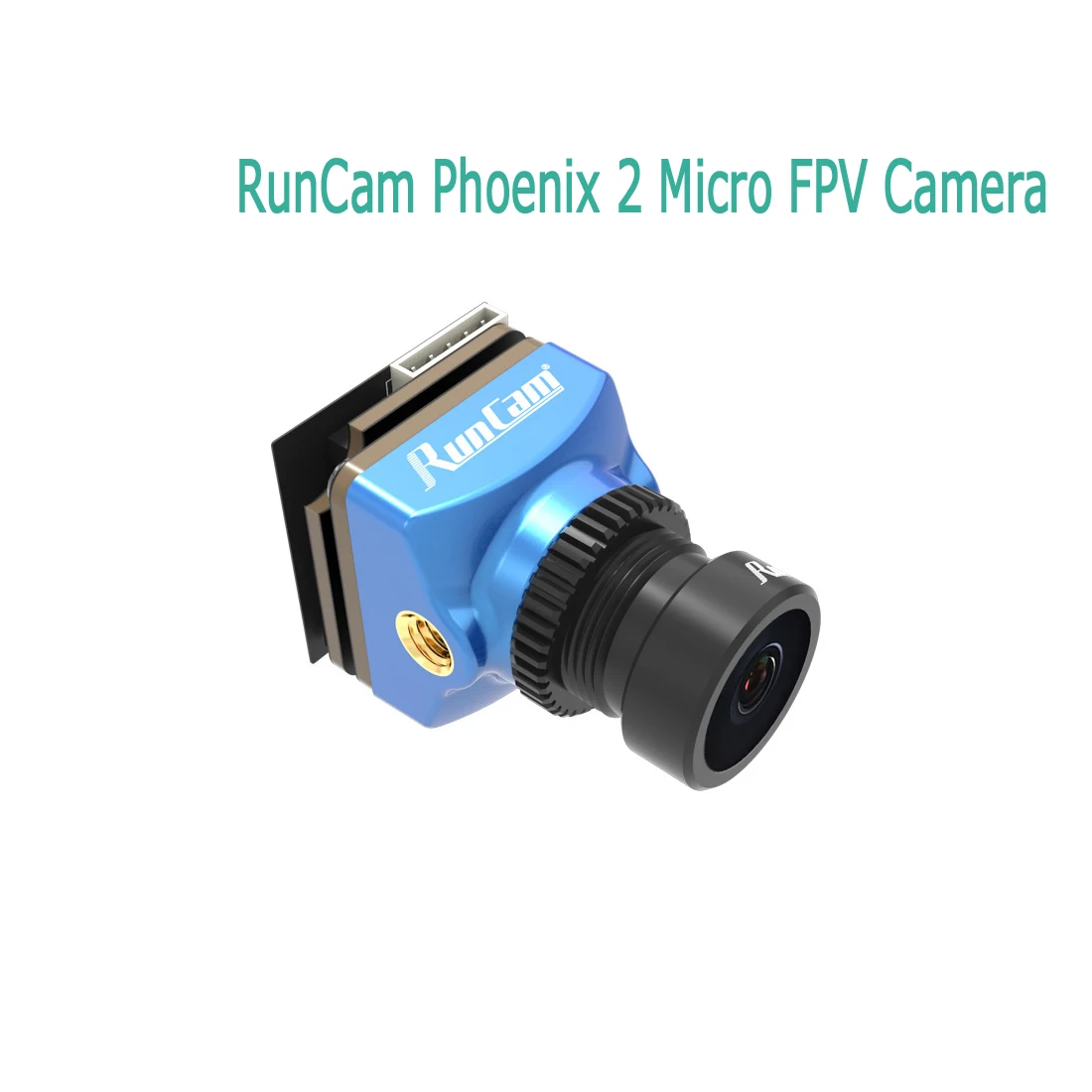

Parameters (Micro Version)
|
Model
|
RunCam Phoenix 2
|
|
Image Sensor
|
1/2" COMS Sensor
|
|
Horizontal Resolution
|
1000TVL
|
|
Lens
|
2.1mm (M12) FOV155° (4:3)
|
|
Screen Format
|
4:3 / 16:9 switchable
|
|
Mirror/Flip
|
Available
|
|
Signal System
|
PAL / NTSC Switchable
|
|
S/N Ratio
|
>50dB (AGC OFF)
|
|
Electronic Shutter Speed
|
Auto
|
|
Auto Gain Control (AGC)
|
Auto
|
|
Min. Illumination
|
0.001Lux@1.2F
|
|
WDR
|
Global WDR
|
|
Day/Night
|
Color/BW/EXT/Auto
|
|
Menu Control
|
Cable Control
|
|
Power
|
DC 5-36V
|
|
Current
|
|
|
Housing Material
|
ABS
|
|
Net Weight
|
9g
|
|
Dimensions
|
19mm*19mm*20mm
|
