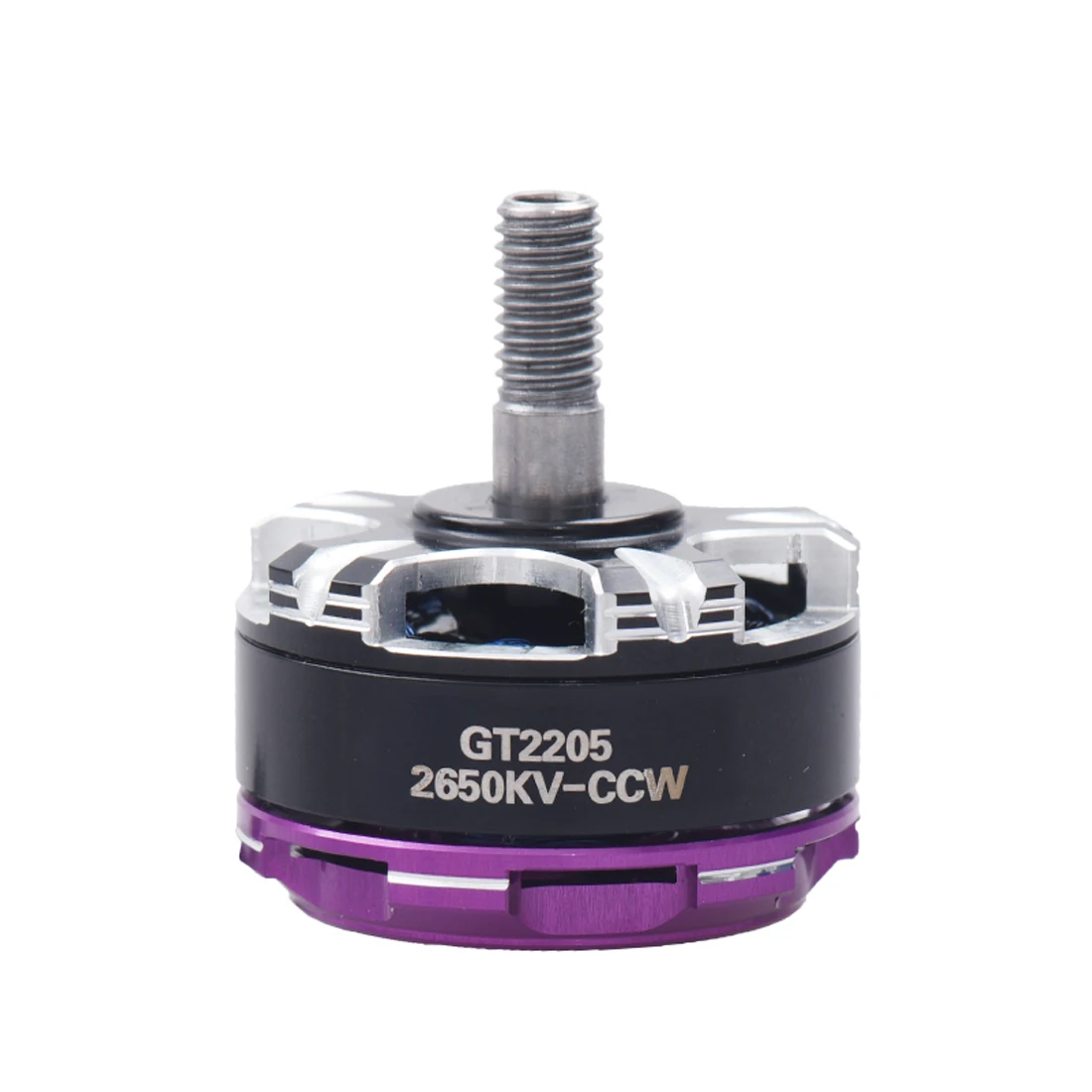

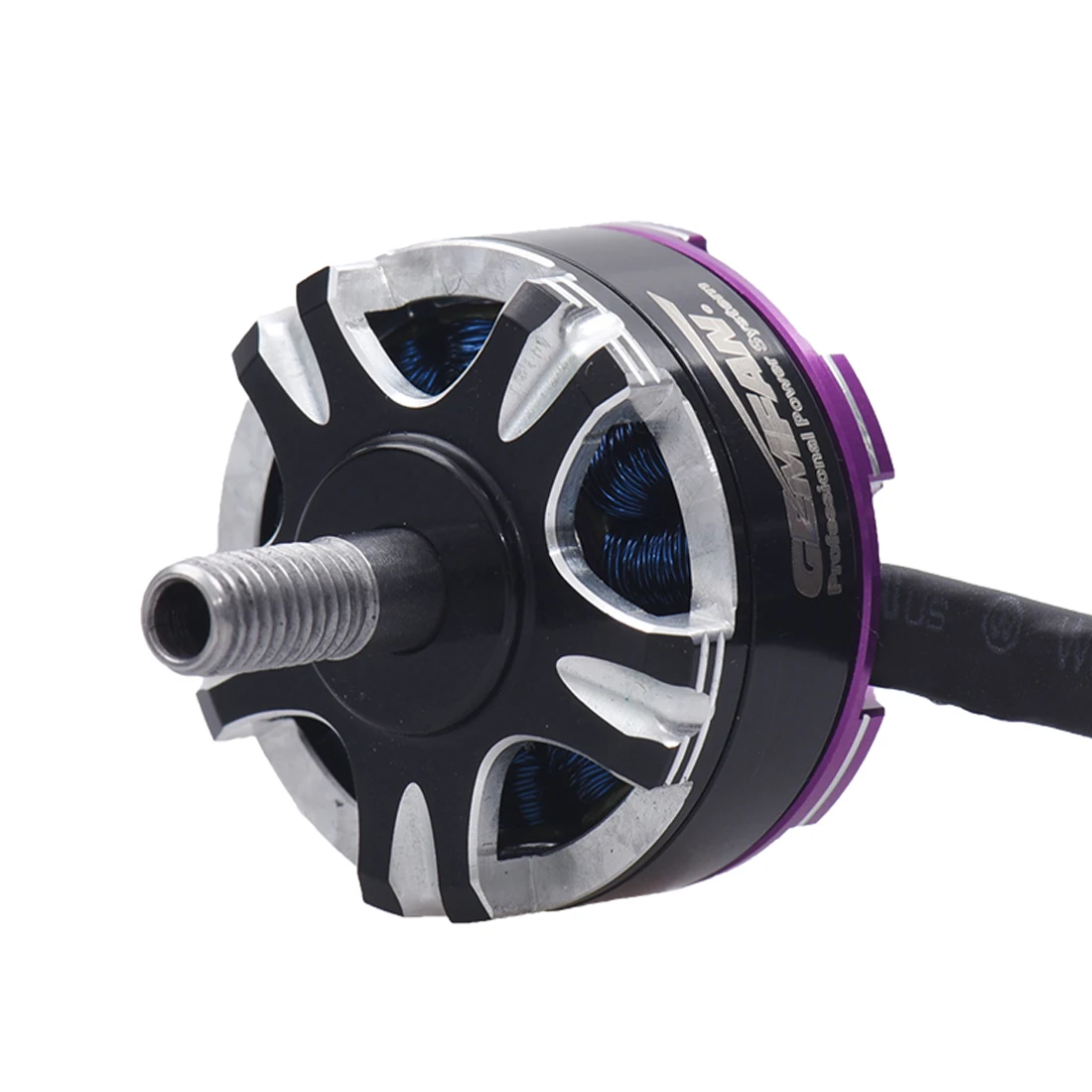

FEICHAO GT2205 2205 2450KV 2650KV 2-4S Brushless Motor for FPV Racing Quadcopter RC Models Aircraft Helicopter Item NO.: F27612/F27613/F27614/F27615

Write a Review

US$ 17.31

Color:

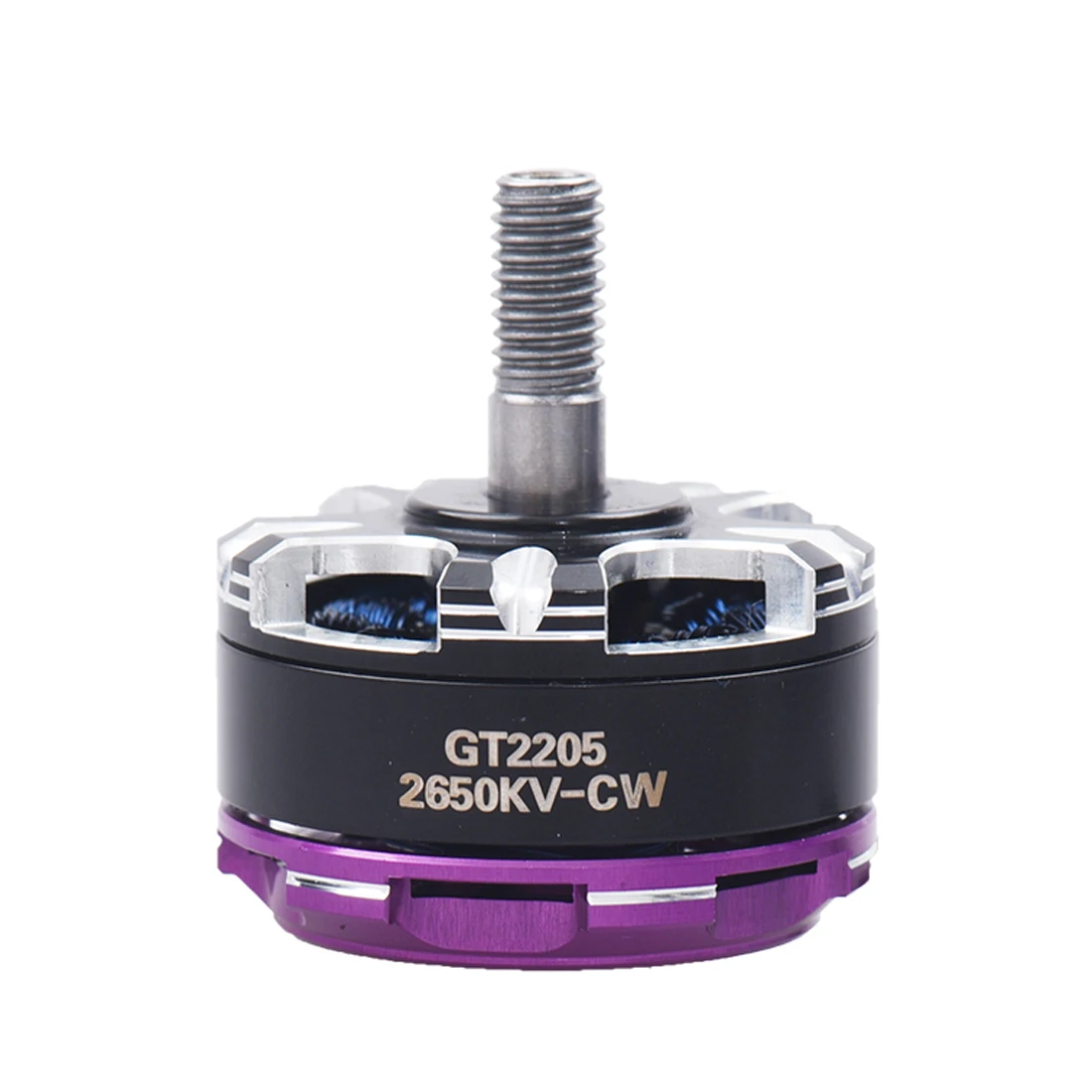

1x 2650KV CW	US$ 17.31	Stock(599)	- +

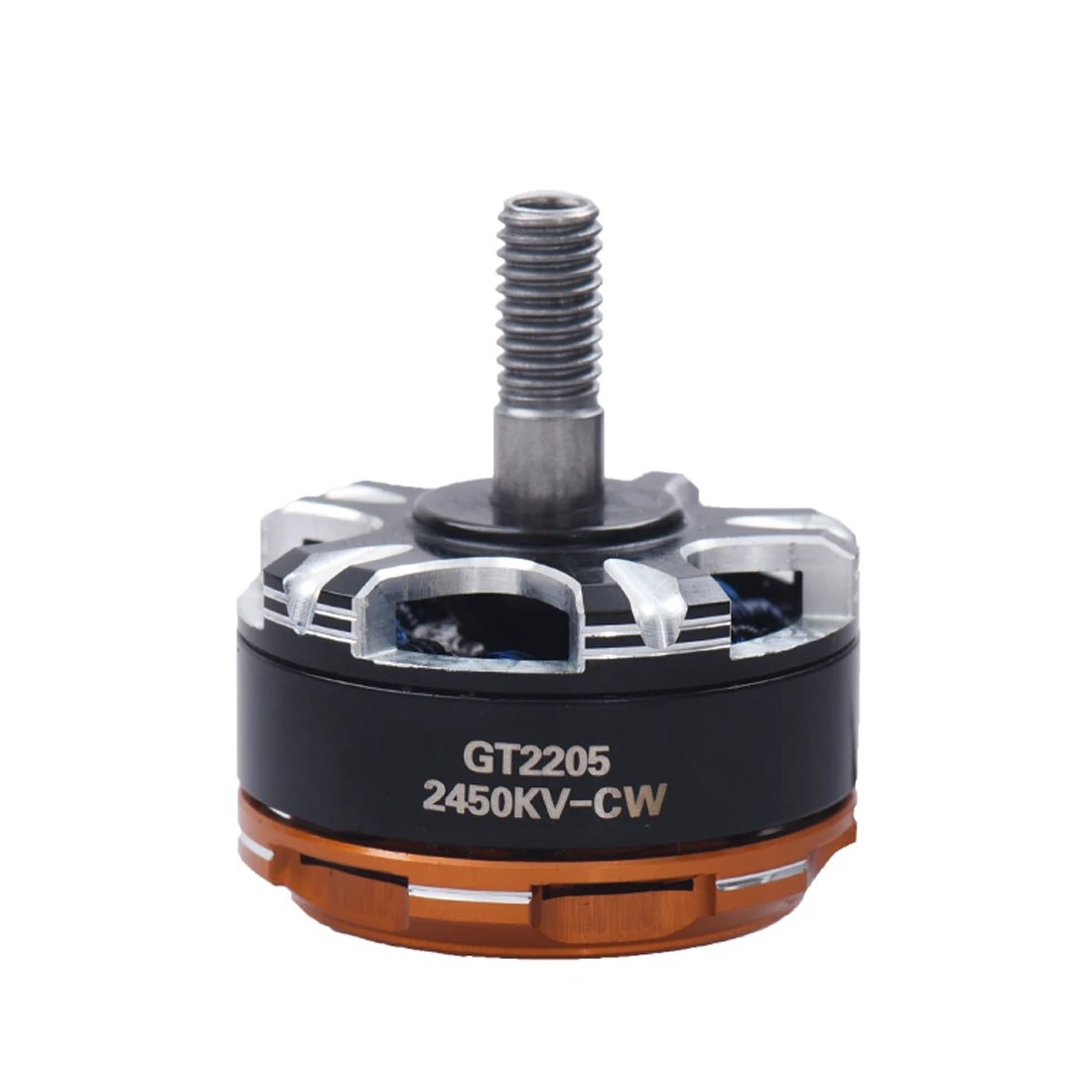

1x 2450KV CW	US$ 17.90	Stock(599)	- +
1x 2650KV CCW	US$ 17.31	Stock(598)	- +

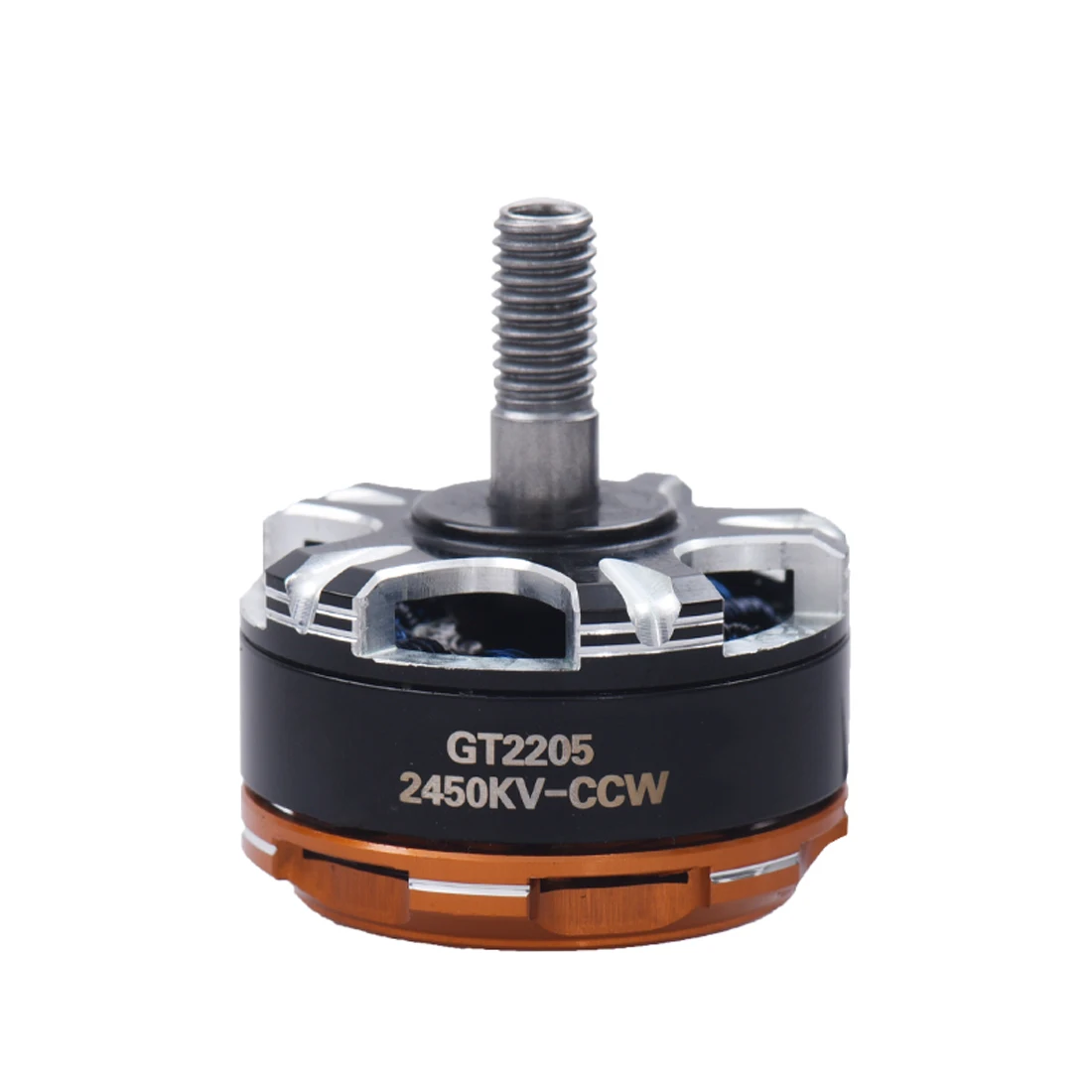

1x 2450KV CCW	US$ 17.90	Stock(599)	- +

Quantity: 0 , Subtotal 0

Product Name	FEICHAO GT2205 2205 2450KV 2650KV 2-4S Brushless Motor for FPV Racing Quadcopter RC Models Aircraft Helicopter
Item NO.	F27612/F27613/F27614/F27615
Weight	0.06 kg = 0.1323 lb = 2.1164 oz
Category	FPV Drone and Part > RC Parts > RC Quadcopter Parts
Brand	FEICHAO
Creation Time	2020-10-14

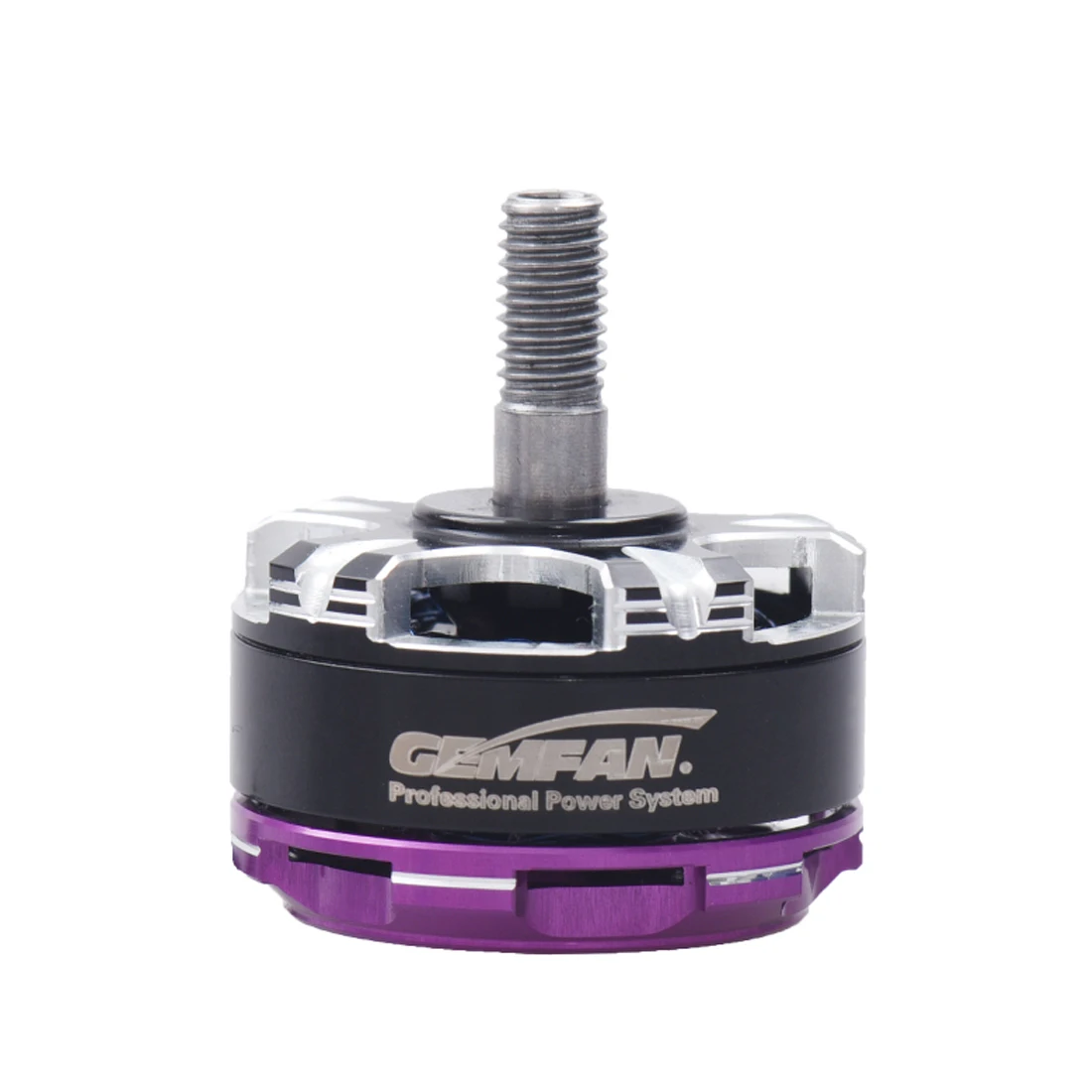

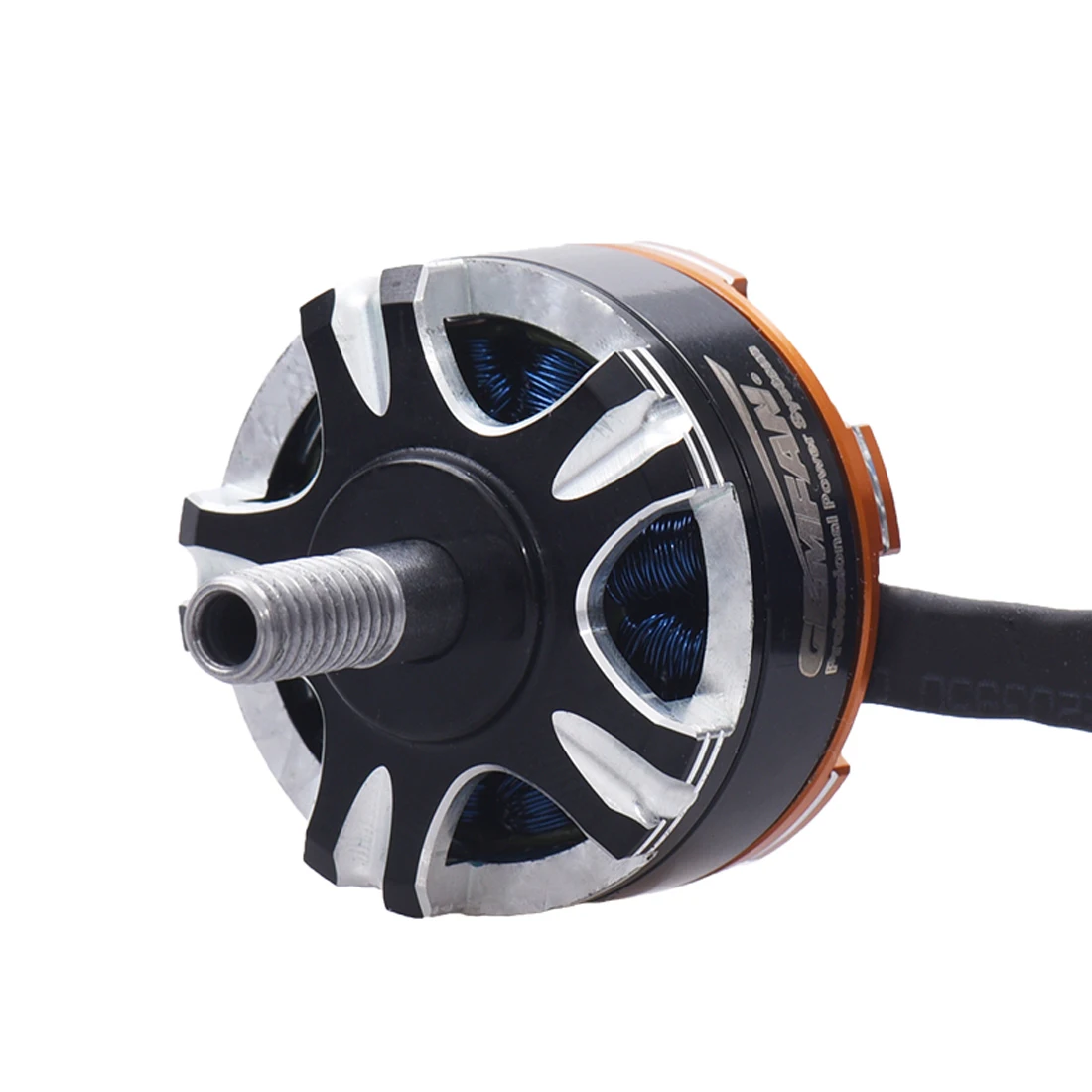

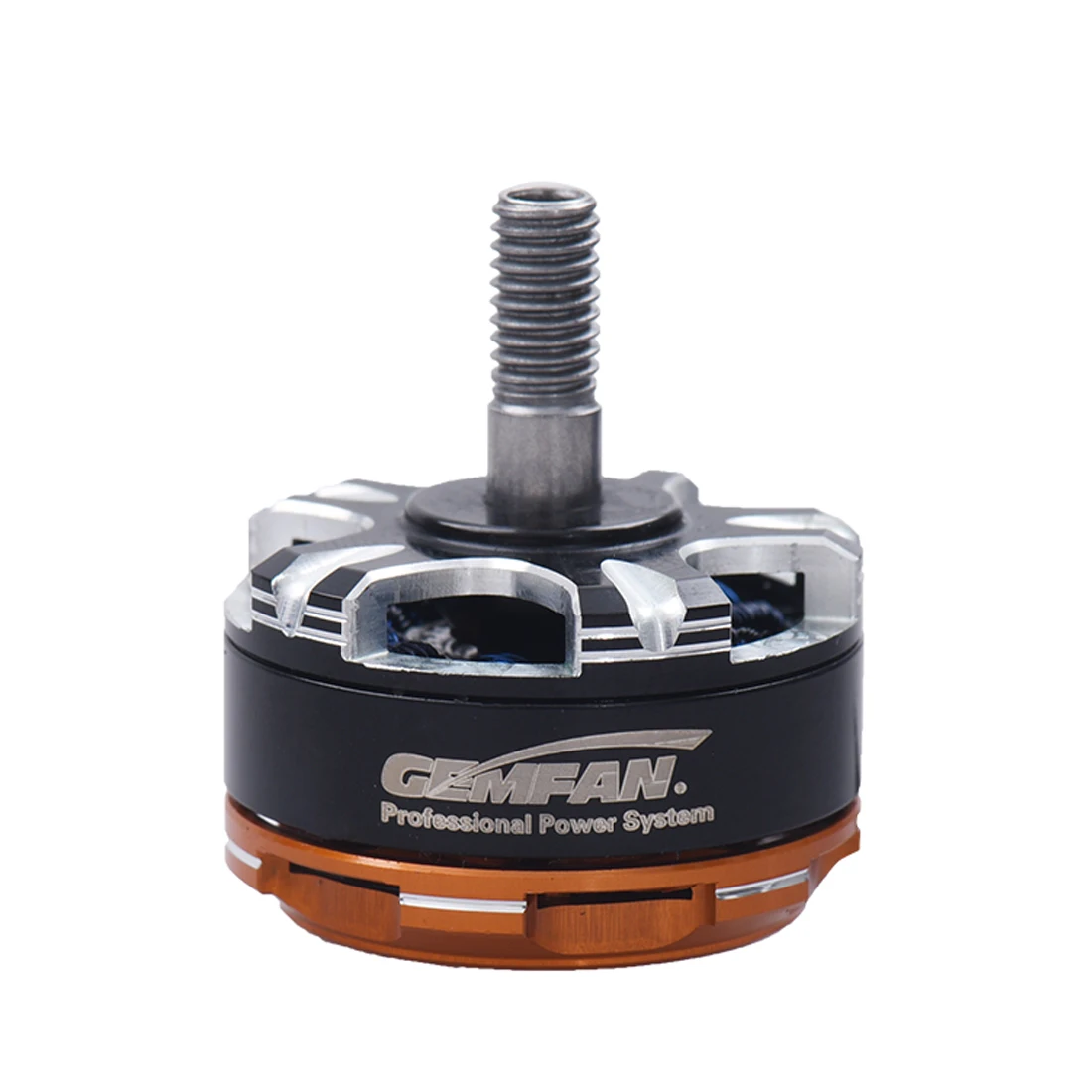

Gemfan GT2205 2205 2450KV 2650KV 2-4S Brushless Motor for FPV Racing Quadcopter RC Models Aircraft Helicopter

Sepcification:

Brand name: Gemfan
Item name: GT2205 brushless motor
KV: 2450KV, 2650KV (option)
Configu-ration: 12N14P
Stator Diamter: 22mm
Stator Length: 5mm
Shaft Diameter: 5mm
Motor Dimension(Dia.*Len): Φ27.6×31.9mm
No.of cells: 2-4S
Max.Effciency Current: 4-5A/ 6-7A
Max Current(30s): 32A/ 39A
Max Continuous Power(W)30s: 515W/ 628W
Weight: 28.8g/ 29g(Excluding Cable)

Note:
1. Please use correct size propeller, wrong propeller will give poor performance and may cause damage to the motor.
2. Do not run the motor more than 60 seconds under static environment, it may cause motor overheating or damage.
3. Making sure that it is clean inside the motor before using.
4. Different ESCs perform better or worse with different motors.If the motor makes abnormal sounds,please reset ESC timing or use a different ESC.
5. Pay attention to screw length during assembly, too long may damage motor coil.

Package included:

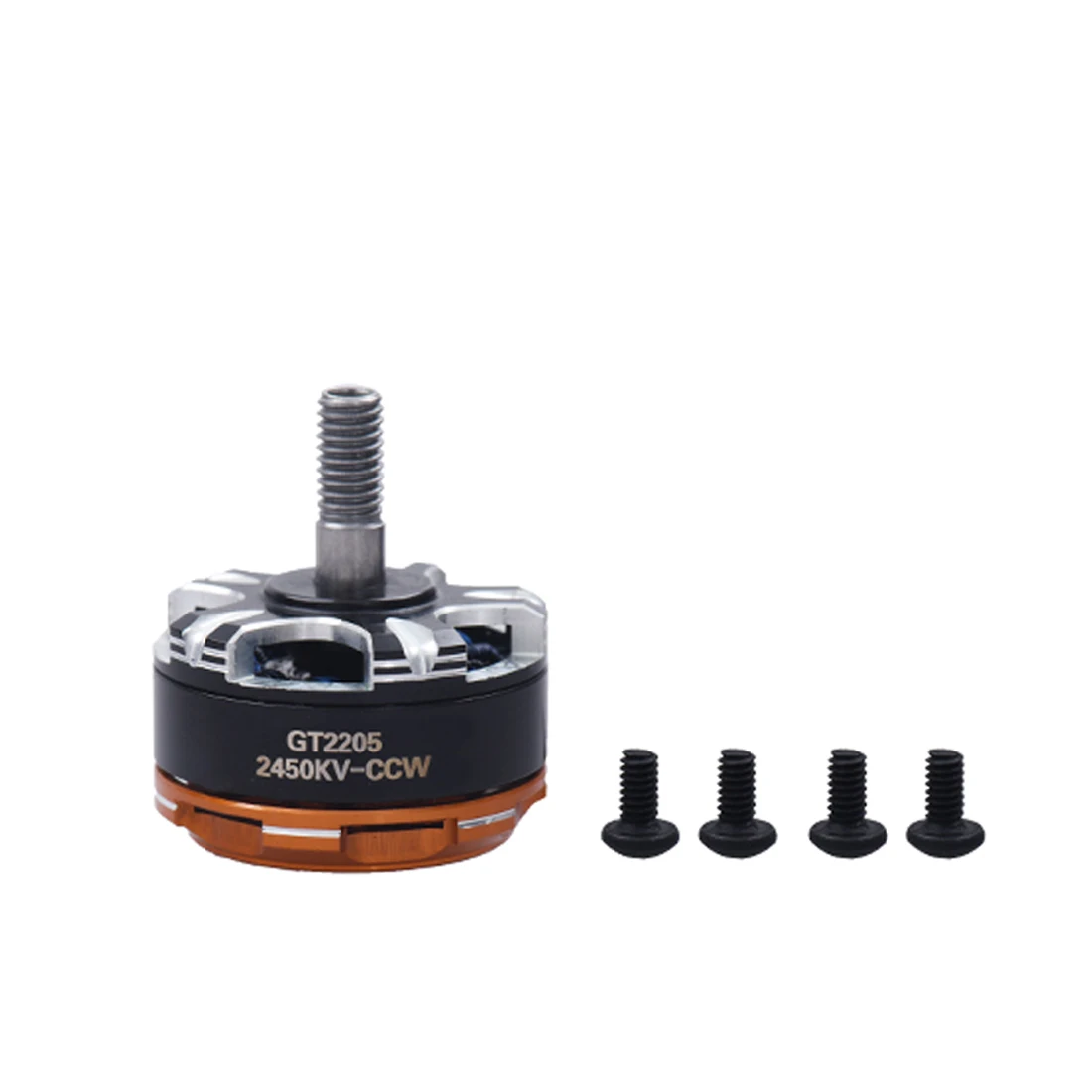

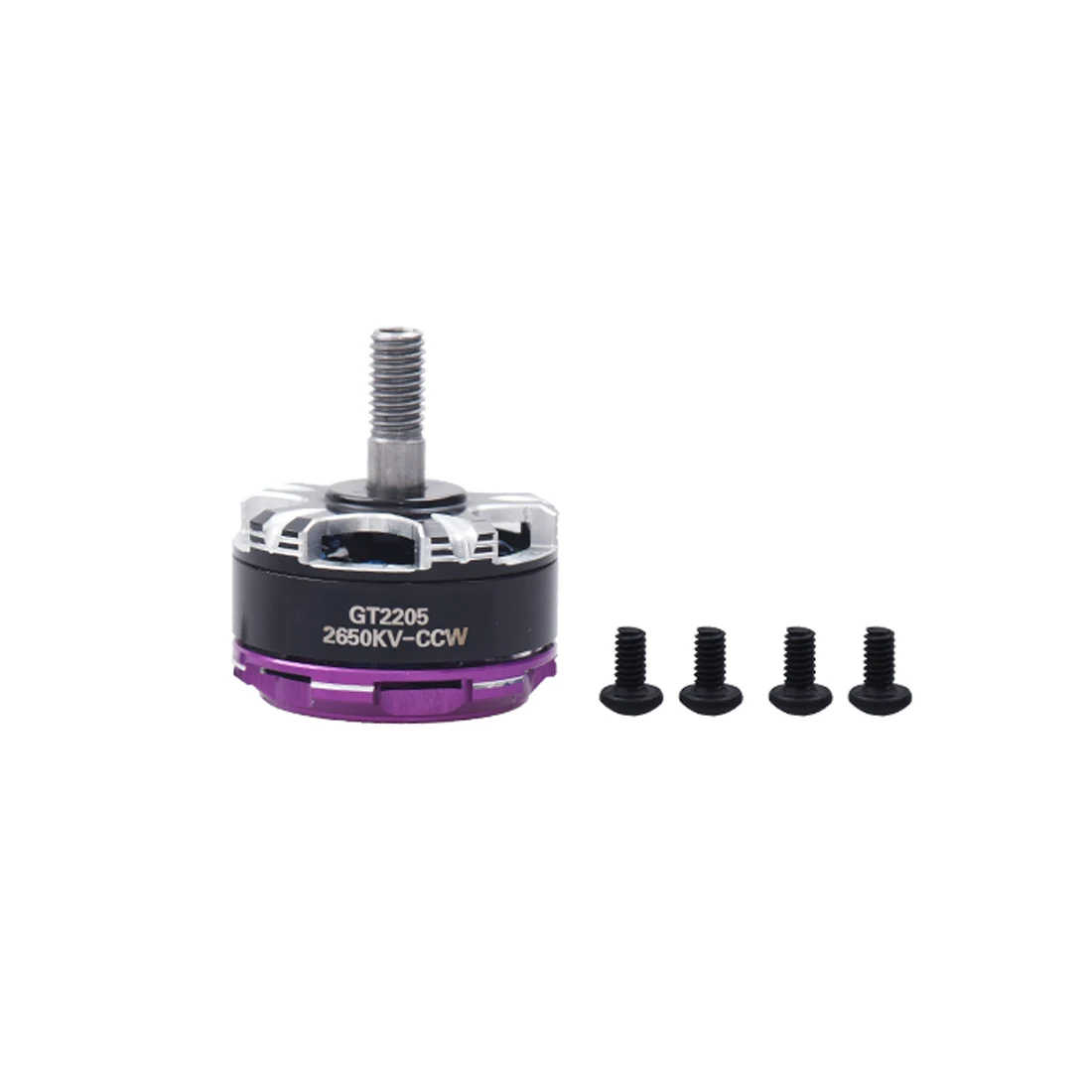

1* GT2205 brushless motor CW or CCW 2450KV/ 2650KV

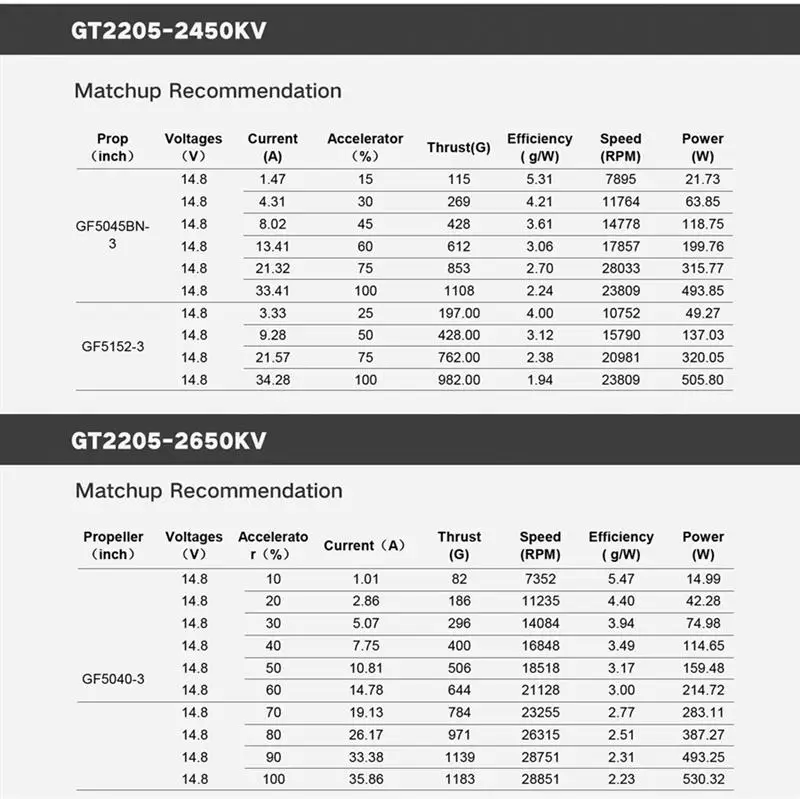

2450KV
